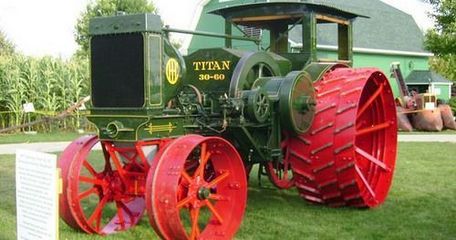

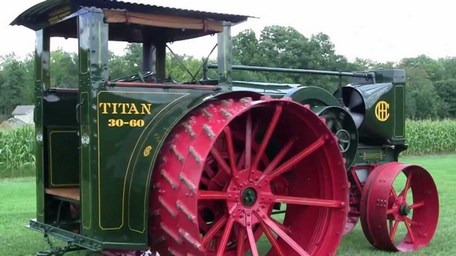

International Harvester Titan 30-60
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Standard-tread tractor |
| Factory: | Milwaukee, Wisconsin, USA |
International Harvester Titan 30-60 Power | |
| Drawbar (claimed): | 30 hp 22.4 kW |
| Belt (claimed): | 60 hp 44.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station with canopy. |
| Transmission: | 1-speed gear |
Titan 30-60 Serial Numbers | |
| 1914: | TJ101 |
| 1914: | TK101 |
| 1915: | TK111 |
| 1915: | TU101 |
| 1916: | TU134 |
| 1917: | TU225 |
Engine Detail | |
| International Harvester | |
| kerosene | |
| 2-cylinder | |
| liquid-cooled | |
| Displacement: | 1781 ci 29.2 L |
| Bore/Stroke: | 9.00x14.00 inches 229 x 356 mm |
| Rated RPM: | 335 |
| Starter type: | compressed air (early) |
| gas pony motor (late) | |
Transmission | |
| Type: | gear |
| Gears: | 1 forward and reverse |
Dimensions | |
| Length: | 192 inches 487 cm |
| Width: | 105 inches 266 cm |
| Height: | 110 inches 279 cm |
| Shiping weight: | 20300 lbs 9208 kg |
| Operating weight: | 20600 lbs 9344 kg |
