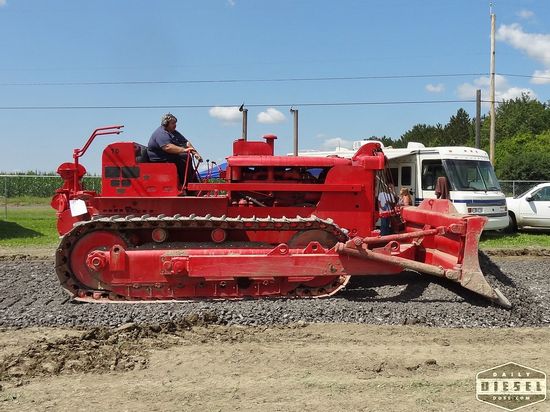

International Harvester TD-24
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Agricultural Crawler tractor |
| Factory: | Melrose Park, Illinois, USA |
| Total built: | 7,500 |
International Harvester TD-24 Power | |
| Drawbar (claimed): | 111 hp 82.8 kW |
| Drawbar (tested): | 168.06 hp 125.3 kW |
Mechanical | |
| Chassis: | crawler |
| Steering: | hydraulic |
| Cab: | Open operator station. |
| Transmission: | 8-speed gear |
TD-24 Serial Numbers | |
| Location: | Left side of dashboard. |
Engine Detail | |
| International Harvester | |
| diesel | |
| 6-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 1090.6 ci 17.9 L |
| Bore/Stroke: | 5.75x7.00 inches 146 x 178 mm |
| Compression: | 15.22:1 |
| Rated RPM: | 1375 |
| Starter volts: | 24 |
| Oil capacity: | 30 qts 28.4 L |
| Coolant capacity: | 148 qts 140.1 L |
Transmission | |
| Type: | gear |
| Gears: | 8 forward and reverse |
| Clutch: | dry disc |
Dimensions | |
| Length: | 182.3 inches 463 cm |
| Width: | 102 inches 259 cm |
| Height: | 95.3 inches 242 cm |
| Shiping weight: | 38350 lbs 17395 kg |
