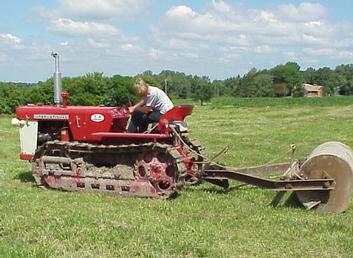

International Harvester T-4
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Agricultural Crawler tractor |
| Factories: | Melrose Park, Illinois, USA |
| Hamilton, Ontario, Canada | |
International Harvester T-4 Power | |
| Drawbar (claimed): | 27 hp 20.1 kW |
| Belt (claimed): | 32.5 hp 24.2 kW |
| Drawbar (tested): | 26.99 hp 20.1 kW |
| PTO (tested): | 32.54 hp 24.3 kW |
Mechanical | |
| Chassis: | crawler |
| Cab: | Open operator station. |
| Transmissions: | 5-speed sliding spur gears |
| 10-speed partial power shift | |
| 5-speed | |
Power Take-off (PTO) | |
| Rear RPM: | 980 |
T-4 Serial Numbers | |
| 1959: | 501 |
| 1960: | 1345 |
| 1961: | 2215 |
Engine Detail | |
| International Harvester C-123 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled vertical L-head | |
| Displacement: | 122.7 ci 2.0 L |
| Bore/Stroke: | 3.125x4.00 inches 79 x 102 mm |
| Compression: | 6.8:1 |
| Rated RPM: | 2000 |
| Firing order: | 1-3-4-2 |
| Oil capacity: | 5 qts 4.7 L |
| Coolant capacity: | 12 qts 11.4 L |
| Sparkplug gap: | 0.023 inches 0.584 mm |
| Point gap: | 0.020 inches 0.508 mm |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.020 inches 0.508 mm |
Dimensions | |
| Length: | 102 inches 259 cm |
| 104.75 inches 266 cm (low-profile) | |
| Width: | 48 inches 121 cm (38-inch track) |
| 78 inches 198 cm (68-inch track) | |
| Height: | 74 inches 187 cm |
| 45.75 inches 116 cm (low-profile) | |
| Weight: | 5,767 lbs 2615 kg |
| Ballasted weight: | 6,995 lbs 3172 kg |
| Ground clearance: | 14.5 inches 36 cm |
| 12 inches 30 cm (low-profile) | |
