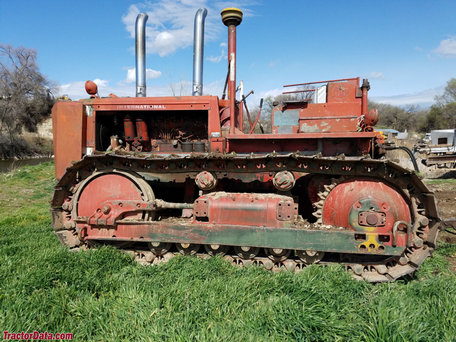

International Harvester TD-18A
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Agricultural Crawler tractor |
| Factory: | Melrose Park, Illinois, USA |
| Total built: | 22,016 |
International Harvester TD-18A Power | |
| Drawbar (claimed): | 87 hp 64.9 kW |
| Belt (claimed): | 101 hp 75.3 kW |
| Drawbar (tested): | 85.61 hp 63.8 kW |
| Belt (tested): | 97.83 hp 73.0 kW |
Mechanical | |
| Chassis: | crawler |
| Steering: | mechanical steering clutches |
| Brakes: | mechanical contracting band |
| Cab: | Open operator station. |
| Transmission: | 6-speed gear |
TD-18A Serial Numbers | |
| Location: | upper-left dash |
| 1949: | 22536 (TDR) |
| 1950: | 22837 (TDR) |
| 1951: | 24668 (TDR) |
| 1952: | 27245 (TDR) |
| 1953: | 29201 (TDR) |
| 1954: | 32089 (TDR) |
| 1955: | 33507 (TDR) |
| Final: | 33649 (TD181) |
| 1955: | 33650 (TD181) |
| 1956: | 35725 (TD181) |
| Final: | 36100 (TD181) |
| 1956: | 36101 (TD182) |
| 1957: | 37882 (TD182) |
| 1958: | 38805 (TD182) |
| Final: | 38861 (TD182) |
Engine Detail | |
| International Harvester D-691 | |
| diesel | |
| 6-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 691.1 ci 11.3 L |
| Bore/Stroke: | 4.75x6.50 inches 121 x 165 mm |
| Air cleaner: | oil bath |
| Compression: | 15.5:1 |
| Rated RPM: | 1350 |
| Starter: | gasoline-start |
| Starter volts: | 12 |
| Oil capacity: | 26 qts 24.6 L |
| Coolant capacity: | 104 qts 98.4 L |
Transmission | |
| Type: | gear |
| Gears: | 6 forward and 2 reverse |
Dimensions | |
| Length: | 166 inches 421 cm |
| Width: | 95 inches 241 cm |
| Height: | 106 inches 269 cm |
| Shiping weight: | 22830 lbs 10355 kg (narrow gauge) |
| 23630 lbs 10718 kg (wide gauge) | |
