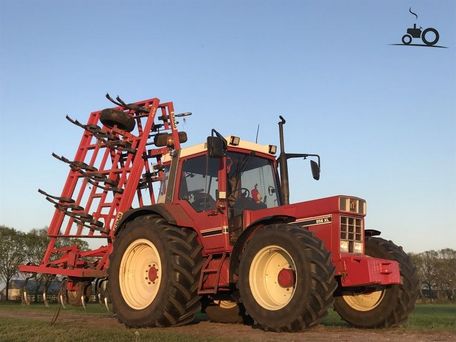

International Harvester 956

Production: 1982 - 1985
Type: Row-crop Tractors

Contents:

Production

Manufacturer:International Harvester
Type:Row-Crop tractor
Factory:Neuss, Germany

Variants

956XL:deluxe cab

International Harvester 956 Power

Engine:95 hp 70.8 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Transmission:16-speed

Hydraulics

Pump flow:9.5 gpm 36.0 lpm

Tractor hitch

Rear lift:9150 lbs 4150 kg

Power Take-off (PTO)

Rear RPM:540, 1000

Engine Detail

International Harvester
diesel
6-cylinder
liquid-cooled
Displacement:358 ci 5.9 L
Bore/Stroke:3.875x5.0625 inches 98 x 129 mm
Power:95 hp 70.8 kW
Rated RPM:2200

Transmission

Gears:16 forward and 8 reverse

Dimensions

Wheelbase:103.54 inches 262 cm
Length:167.72 inches 426 cm
Height:108.27 inches 275 cm
Weight:9459 lbs 4290 kg
10,297 lbs 4670 kg (MFWD)
