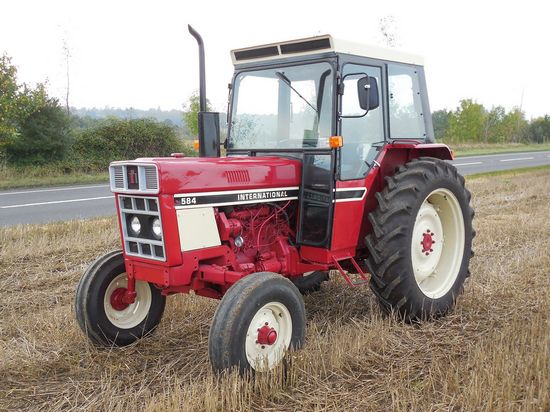

International Harvester 584
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Utility tractor |
| Factory: | Doncaster, England |
| Original price: | $18,850 (1984 ) |
International Harvester 584 Power | |
| Engine: | 60 hp 44.7 kW |
| Drawbar (claimed): | 47.4 hp 35.3 kW |
| PTO (claimed): | 52.5 hp 39.1 kW |
| Drawbar (tested): | 46.73 hp 34.8 kW |
| PTO (tested): | 52.54 hp 39.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | independent hydraulic wet disc |
| Cab: | ROPS canopy or cab optional. |
| Transmission: | 8-speed syncromesh |
Capacity | |
| Fuel: | 20 gal 75.7 L |
| Hydraulic system: | 9 gal 34.1 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 9 gal 34.1 L |
| Valves: | 1 or 2 |
| Total flow: | 16.1 gpm 60.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift: | 3600 lbs 1632 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540 |
584 Serial Numbers | |
| Location: | Front axle support on right side of tractor. |
| 1978: | 501 |
| 1979: | 2120 |
| 1980: | 3944 |
| 1981: | 5766 |
| 1982: | 7033 |
| 1983: | 8348 |
| 1984: | 9215 |
Electrical | |
| Ground: | negative |
| Charging amps: | 45 |
| Battery volts: | 12 |
Engine Detail | |
| International Harvester D-206 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 206 ci 3.4 L |
| Bore/Stroke: | 3.875x4.375 inches 98 x 111 mm |
| Power: | 60 hp 44.7 kW |
| Air cleaner: | dry |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
| Oil capacity: | 8.8 qts 8.3 L |
| Coolant capacity: | 14.4 qts 13.6 L |
Transmission | |
| Type: | syncromesh |
| Gears: | 8 forward and 4 reverse |
| Clutch: | dry disc |
| Oil capacity: | 36 qts 34.1 L |
| Four synchronized gears in high, low, and reverse ranges. | |
Dimensions | |
| Utility Wheelbase: | 84.5 inches 214 cm |
| Row-crop Wheelbase: | 84.5 inches 214 cm |
| 4WD Wheelbase: | 85.2 inches 216 cm |
| Low-profile Wheelbase: | 83.75 inches 212 cm |
| Utility Length: | 142 inches 360 cm |
| Row-crop Length: | 139 inches 353 cm |
| 4WD Length: | 146.2 inches 371 cm |
| Low-profile Length: | 142 inches 360 cm |
| Utility Width: | 74 inches 187 cm |
| Row-crop Width: | 75 inches 190 cm |
| 4WD Width: | 74 inches 187 cm |
| Low-profile Width: | 78.5 inches 199 cm |
| Utility Ground clearance: | 17.75 inches 45 cm |
| Row-crop Ground clearance: | 17.75 inches 45 cm |
| 4WD Ground clearance: | 17.75 inches 45 cm |
| Low-profile Ground clearance: | 10.7 inches 27 cm |
