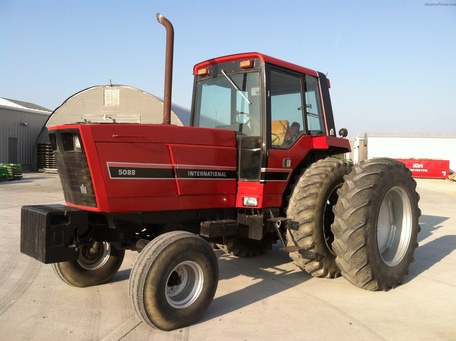

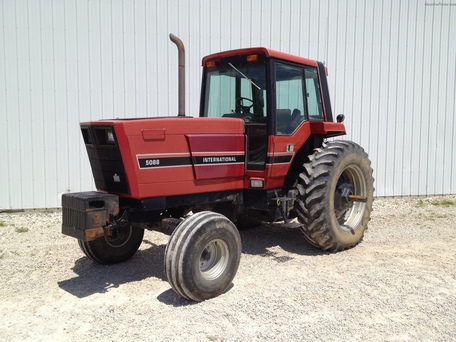

International Harvester 5088
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Row-Crop tractor |
| Factory: | Rock Island, Illinois, USA |
| Total built: | 8,176 |
| Original price: | $54,300 (1985) |
International Harvester 5088 Power | |
| Drawbar (claimed): | 119 hp 88.7 kW |
| PTO (claimed): | 135 hp 100.7 kW |
| Drawbar (tested): | 116.19 hp 86.6 kW |
| PTO (tested): | 136.12 hp 101.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD optional | |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard with heat and A/C. Optional burgundy or western interior finish. |
| Transmission: | 18-speed partial power shift |
Capacity | |
| Fuel: | 70 gal 264.9 L |
| Hydraulic system: | 43.5 gal 164.6 L |
Hydraulics | |
| Type: | closed center |
| Capacity: | 43.5 gal 164.6 L |
| Valves: | 2 |
| Pump flow: | 25 gpm 94.6 lpm |
| 40 gpm 151.4 lpm (optional) | |
| Total flow: | 67 gpm 253.6 lpm |
| 82 gpm 310.4 lpm (optional) | |
| Steering flow: | 12 gpm 45.4 lpm |
Tractor hitch | |
| Rear Type: | 3 |
| Rear lift: | 6,990 lbs 3170 kg |
| 8,280 lbs 3755 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
5088 Serial Numbers | |
| Location: | Right side of tractor frame |
| 1981: | 501 |
| 1982: | 3551 |
| 1983: | 6015 |
| 1984: | 7307 |
| 1985: | 8623 |
Engine Detail | |
| International Harvester DT-436B | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 436 ci 7.1 L |
| Bore/Stroke: | 4.30x5.00 inches 109 x 127 mm |
| Rated RPM: | 2400 |
| Oil capacity: | 20 qts 18.9 L |
| Coolant capacity: | 29 qts 27.4 L |
Transmission | |
| Transmission: | Synchro Tri-Six (STS) |
| Type: | partial power shift |
| Gears: | 18 forward and 6 reverse |
| Oil capacity: | 174 qts 164.7 L |
| Left lever selects gear, right lever selects high, medium, low, or reverse range. Clutch-free on-the-move powershifting in gear pairs 1/2, 3/4, and 5/6. Synchronized on-the-move shifting (with the clutch) between pairs. | |
Dimensions | |
| Wheelbase: | 111.6 inches 283 cm |
| Length: | 196.6 inches 499 cm |
| Width: | 112 inches 284 cm |
| Height: | 115 inches 292 cm |
| Shiping weight: | 13,765 lbs 6243 kg |
| Operating weight: | 16,010 lbs 7262 kg |
| Ground clearance: | 17.2 inches 43 cm |
