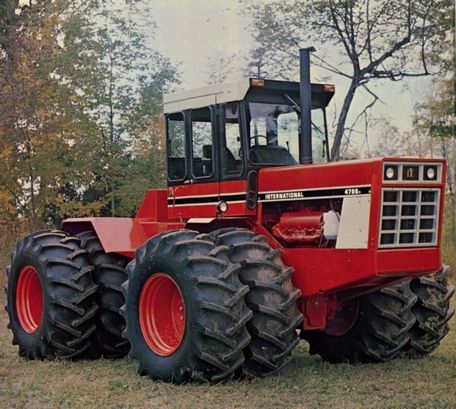

International Harvester 4786

Production: 1978 - 1981

Production
Distributor:	International Harvester
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA
Original price:	$78,700 (1981 )

International Harvester 4786 Power
Engine:	350 hp 261.0 kW
Drawbar (claimed):	260 hp 193.9 kW
Drawbar (tested):	258.20 hp 192.5 kW

Mechanical
Chassis:	4x4 articulated 4WD
Brakes:	hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	10-speed sliding gear

Hydraulics
Pump flow:	19 gpm 71.9 lpm

Tractor hitch
Rear Type:	IV*Optional

Engine Detail
International Harvester DV-800
turbocharged diesel
8-cylinder
liquid-cooled
Displacement:	798 ci 13.1 L
Bore/Stroke:	5.31x4.50 inches 135 x 114 mm
Power:	350 hp 261.0 kW
Air cleaner:	dry
Compression:	15.6:1
Rated RPM:	2600
Starter volts:	12

Transmission
Type:	sliding gear
Gears:	10 forward and 2 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	118 inches 299 cm
Operating weight:	30200 lbs 13698 kg *Weight with 23.1-30 duals.
Front tread:	68.1 to 125.1 inches 172 to 317 cm
Rear tread:	68.1 to 125.1 inches 172 to 317 cm
