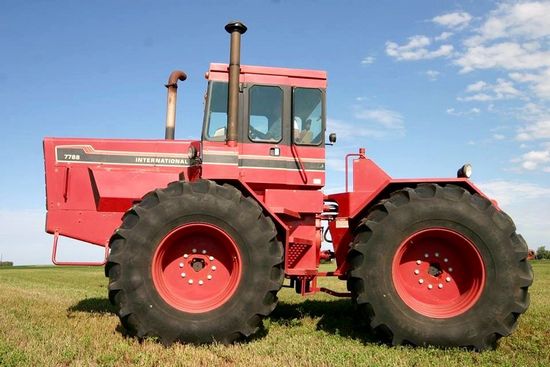

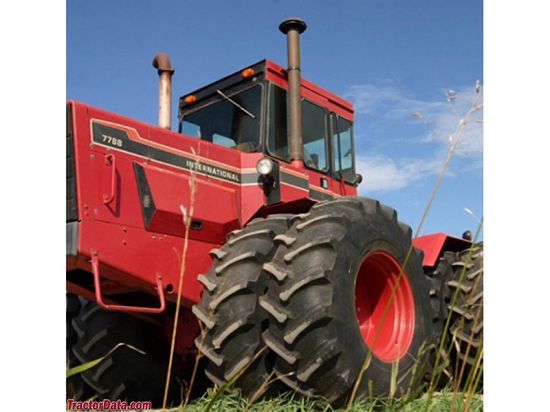

International Harvester 7788

Production: 1982 - 1984

Production
Distributor:	International Harvester
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA
Total built:	2
Original price:	$93,300 (1984 )

International Harvester 7788 Power
Engine:	330 hp 246.1 kW
PTO (claimed):	265 hp 197.6 kW

Mechanical
Chassis:	4x4 articulated 4WD
Cab:	Cab standard with air-conditioning.
Transmission:	20-speed

Hydraulics
Pump flow:	19 gpm 71.9 lpm

Tractor hitch
Rear Type:	III*Optional

Engine Detail
International Harvester DV-800
turbocharged diesel
8-cylinder
liquid-cooled V8
Displacement:	798 ci 13.1 L
Bore/Stroke:	5.31x4.50 inches 135 x 114 mm
Power:	330 hp 246.1 kW
Rated RPM:	2400
Torque:	725 lb-ft 983.1 Nm
Torque RPM:	1800
Oil capacity:	30 qts 28.4 L
Coolant capacity:	69 qts 65.3 L

Transmission
Gears:	20 forward and 4 reverse

Dimensions
Wheelbase:	118 inches 299 cm
Length:	246 inches 624 cm
Width:	117 inches 297 cm
Weight:	21,550 lbs 9775 kg
Ground clearance:	15.6 inches 39 cm
