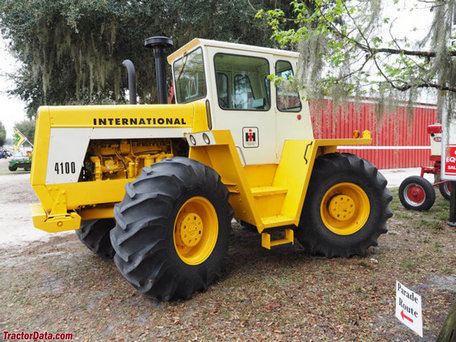

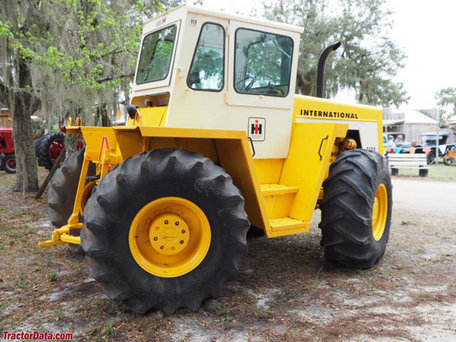

International Harvester 4100
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Rock Island, Illinois, USA |
| Total built: | 1,217 |
| Original price: | $18,200 (1968) |
International Harvester 4100 Power | |
| Drawbar (claimed): | 116.15 hp 86.6 kW |
| PTO (claimed): | 130 hp 96.9 kW |
| Drawbar (tested): | 110.82 hp 82.6 kW |
Mechanical | |
| Chassis: | 4x4 4WD |
| Steering: | hydraulic power |
| Brakes: | integral hydraulic expanding shoe |
| Cab: | Cab standard |
| Transmission: | 8-speed |
Hydraulics | |
| Pump flow: | 16.5 gpm 62.5 lpm |
Tractor hitch | |
| Rear Type: | III (optional) |
Power Take-off (PTO) | |
| Rear PTO: | optional independent |
| Rear RPM: | 1000 (1-3/8) |
| 1000 (1-3/4) | |
4100 Serial Numbers | |
| Location: | Clutch housing, right side |
| 1966: | 8001 |
| 1967: | 8723 |
| 1968: | 8986 |
| Final: | 9218 |
Engine Detail | |
| International Harvester | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 429 ci 7.0 L |
| Bore/Stroke: | 4.50x4.50 inches 114 x 114 mm |
| Air cleaner: | dual stage dry |
| Compression: | 16:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
Transmission | |
| Transmission: | sliding gear |
| Gears: | 8 forward and 4 reverse |
| Clutch: | dry disc |
Dimensions | |
| Wheelbase: | 100 inches 254 cm |
| Operating weight: | 15,175 lbs 6883 kg |
| Ballasted weight: | 19,100 lbs 8663 kg |
