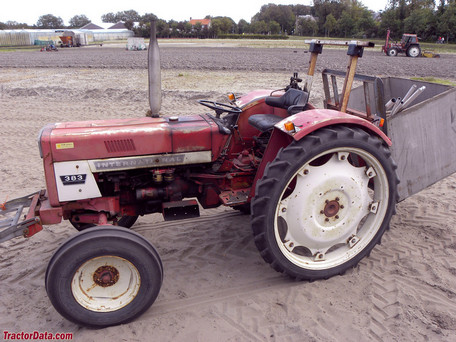

International Harvester 383

Production: 1982 - 1984

Production
Distributor:	International Harvester
Manufacturer:	Komatsu
Type:	Utility tractor
Factory:	Japan
Original price:	$11,400 (1984 )

International Harvester 383 Power
Engine:	40 hp 29.8 kW
PTO (claimed):	37 hp 27.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD optional
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	ROPS and canopy optional
Transmission:	8-speed

Capacity
Fuel:	15.1 gal 57.2 L
Hydraulic system:	8.5 gal 32.2 L

Hydraulics
Capacity:	8.5 gal 32.2 L
Pressure:	2500 psi 172.4 bar
Total flow:	6.4 gpm 24.2 lpm

Tractor hitch
Rear Type:	I/II

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	35
Battery volts:	12
Battery AH:	100

Engine Detail
Nissan SD22
diesel
4-cylinder
liquid-cooled
Displacement:	132.1 ci 2.2 L
Bore/Stroke:	3.27x3.94 inches 83 x 100 mm
Power:	40 hp 29.8 kW
Rated RPM:	2400
Torque:	90.4 lb-ft 122.6 Nm
Torque RPM:	1700
Starter volts:	12
Starter power:	2.7 hp 2.0 kW
Oil capacity:	6 qts 5.7 L
Coolant capacity:	8.4 qts 7.9 L

Transmission
Gears:	8 forward and 2 reverse
Oil capacity:	34 qts 32.2 L

Dimensions
Length:	117.3 inches 297 cm
Width:	64 inches 162 cm
Height (steering wheel):	61.0 inches 154 cm
Height (exhaust):	87.4 inches 221 cm
Shiping weight:	3,484 lbs 1580 kg (2WD)
3,903 lbs 1770 kg (4WD)
Ground clearance:	15.4 inches 39 cm (2WD)
15.2 inches 38 cm (4WD)
Front tread:	48 to 75.7 inches 121 to 192 cm
Rear tread:	47.6 to 76.1 inches 120 to 193 cm
