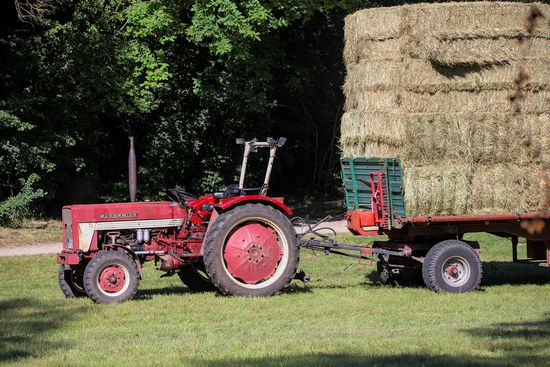

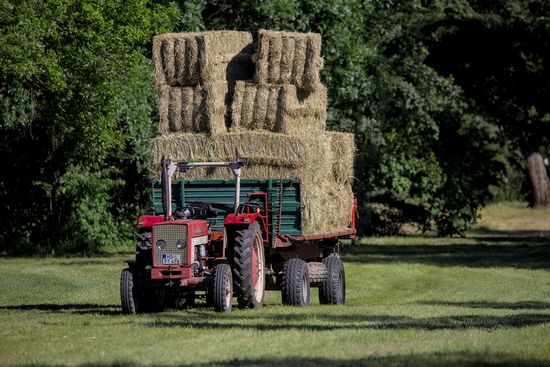

International Harvester 353

Production: 1967 - 1972

Production
Manufacturer:	International Harvester
Factory:	Neuss, Germany

International Harvester 353 Power
Engine (gross):	38 hp 28.3 kW
Engine (net):	35.6 hp 26.5 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Cab:	Open operator station.
Transmissions:	8-speed
12-speed creeper

Capacity
Fuel:	15.9 gal 60.2 L
Hydraulic system:	3.4 gal 12.9 L

Hydraulics
Capacity:	3.4 gal 12.9 L

Tractor hitch
Rear Type:	II/I
Rear lift:	3880 lbs 1759 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Engine Detail
International Harvester D-155
diesel
3-cylinder
liquid-cooled
Displacement:	154.8 ci 2.5 L
Bore/Stroke:	3.87x4.37 inches 98 x 111 mm
Power (gross):	38 hp 28.3 kW
Compression:	16:1
Rated RPM:	1900
Torque:	106 lb-ft 143.7 Nm
Torque RPM:	1350
Starter volts:	12
Oil capacity:	6.9 qts 6.5 L
Coolant capacity:	13.7 qts 13.0 L

Dimensions
Wheelbase:	75.6 inches 192 cm
Length:	121.6 inches 308 cm
Width:	63.8 inches 162 cm
Height (steering wheel):	60 inches 152 cm
Weight:	3801 lbs 1724 kg
Ground clearance:	14.6 inches 37 cm
Front tread:	48 to 73.2 inches 121 to 185 cm
Rear tread:	50.4 to 74 inches 128 to 187 cm
