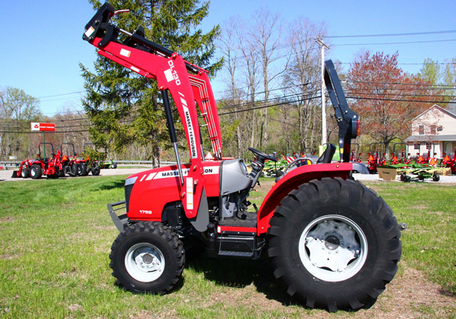

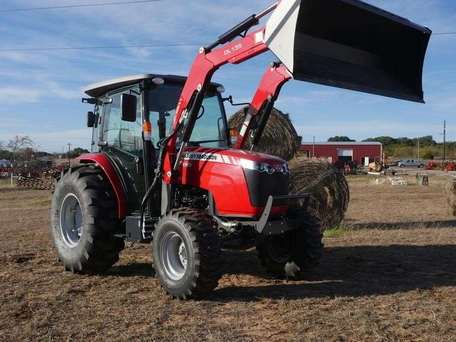

Massey Ferguson 1759
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson |
| Type: | Compact Utility tractor |
| Original price: | $35,558 (2018 shuttle ROPS ) |
Massey Ferguson 1759 Power | |
| Engine: | 59 hp 44.0 kW |
| PTO (claimed): | 45.6 hp 34.0 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | planetary |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. Cab optional with air-conditioning. |
| Transmission: | 12-speed power shuttle |
Hydraulics | |
| Type: | open center gear pump |
| Valves: | 1 to 3 |
| SCV flow: | 12.8 gpm 48.4 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position control |
| draft control*Optional | |
| Rear lift (at 24"/610mm): | 3307 lbs 1500 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540 (1.375) |
| Mid PTO: | optional |
| Mid RPM: | 2000 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Mitsubishi K39 | |
| turbocharged intercooled diesel | |
| 4-cylinder | |
| liquid-cooled inline | |
| Displacement: | 134.7 ci 2.2 L |
| Bore/Stroke: | 3.386x3.74 inches 86 x 95 mm |
| Emissions: | Tier IV |
| Emission control: | diesel oxidation catalyst and diesel particulate filter |
| Power: | 59 hp 44.0 kW |
| Fuel system: | high-pressure common rail direct injection |
| Rated RPM: | 2500 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | power shuttle |
| Gears: | 12 forward and reverse |
| Clutch: | wet disc |
| Four synchronized gears in three ranges. | |
Dimensions | |
| Wheelbase: | 77.2 inches 196 cm |
| Length: | 134.6 inches 341 cm |
| Width: | 71.1 inches 180 cm |
| Height (cab): | 93.3 inches 236 cm |
| ROPS Weight: | 4343 lbs 1969 kg |
| Cab Weight: | 4784 lbs 2170 kg |
