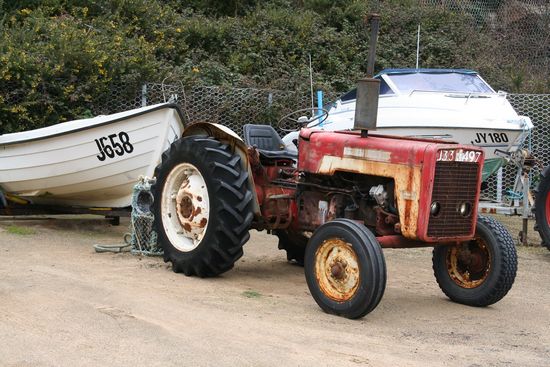

International Harvester 276

Production: 1966 - 1971

Production
Manufacturer:	International Harvester
Factory:	Doncaster, England

International Harvester 276 Power
Engine:	38 hp 28.3 kW

Mechanical
Chassis:	4x2 2WD
Transmission:	8-speed

Capacity
Fuel:	12.7 gal 48.1 L
Hydraulic system:	3 gal 11.4 L

Hydraulics
Capacity:	3 gal 11.4 L
Pump flow:	7.2 gpm 27.3 lpm

Tractor hitch
Rear lift:	2601 lbs 1179 kg

Power Take-off (PTO)
Rear RPM:	540

Engine Detail
International Harvester
diesel
4-cylinder
liquid-cooled
Displacement:	144 ci 2.4 L
Bore/Stroke:	3.375x4.00 inches 86 x 102 mm
Power:	38 hp 28.3 kW
Rated RPM:	1875
Firing order:	1-3-4-2
Oil capacity:	8.3 qts 7.9 L
Coolant capacity:	10.8 qts 10.2 L

Transmission
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	76.38 inches 194 cm
Length:	116.14 inches 294 cm
Weight:	4189 lbs 1900 kg
