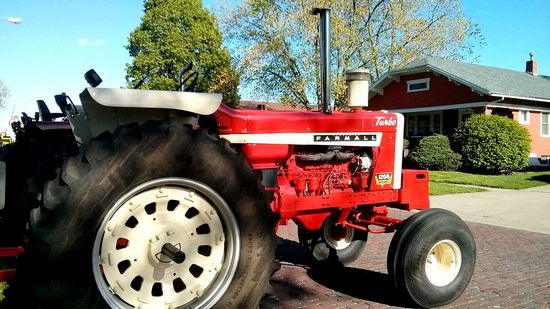

International Harvester 1206
Contents:
Production | |
| Manufacturer: | International Harvester |
| Total built: | 1,289 |
| Original price: | $9,450 (1967) |
Variants | |
| standard front | |
| row-crop | |
| Wheatland: | larger platform, heavy drawbar |
International Harvester 1206 Power | |
| Drawbar (claimed): | 99 hp 73.8 kW |
| PTO (claimed): | 110 hp 82.0 kW |
| Drawbar (tested): | 95.00 hp 70.8 kW |
| PTO (tested): | 112.64 hp 84.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 FWA 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic dry disc |
| Cab: | Open operator station. Optional one-door cab. Optional heat and air-conditioning. |
| Transmissions: | 8-speed unsynchronized |
| 16-speed partial power shift | |
Hydraulics | |
| Valves: | 0 to 2 |
| Pump flow: | 12 gpm 45.4 lpm |
Tractor hitch | |
| Rear Type: | III |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
1206 Serial Numbers | |
| Location: | On clutch housing, left side |
| 1965: | 7501 |
| 1966: | 7772 |
| 1967: | 8492 |
Engine Detail | |
| International Harvester DT361 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 361 ci 5.9 L |
| Bore/Stroke: | 4.125x4.25 inches 105 x 108 mm |
| Air cleaner: | two-stage dry |
| Compression: | 17.0:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
Dimensions | |
| Operating weight: | 10,115 lbs 4588 kg |
| Ballasted weight: | 13,580 lbs 6159 kg |
