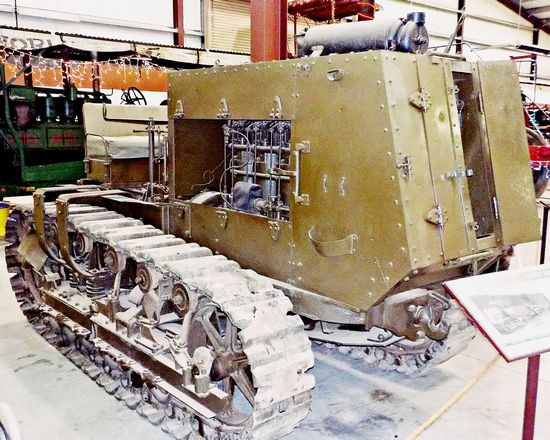

Holt 10-Ton

Production: 1918 - 1925
Type: Agricultural Crawler Tractors

Contents:

Production

Manufacturer:Holt
Type:Agricultural Crawler tractor
Factory:Peoria, Illinois, USA
Also known as the Holt T-16 or 40-60.

Holt 10-Ton Power

Drawbar (claimed):40 hp 29.8 kW
Belt (claimed):55 hp 41.0 kW
Plows:8

Mechanical

Chassis:crawler
Cab:Open operator station. Canopy available. Steel cab available.
Transmission:3-speed gear

Engine Detail

Holt M-11
gasoline
4-cylinder
liquid-cooled
Displacement:929 ci 15.2 L
Bore/Stroke:6.50x7.00 inches 165 x 178 mm
Rated RPM:750
Firing order:1-2-4-3
Oil capacity:18 qts 17.0 L
Coolant capacity:54 qts 51.1 L

Transmission

Type:gear
Gears:3 forward and 1 reverse
Oil capacity:28 qts 26.5 L

Dimensions

Length:151 inches 383 cm
Width:82 inches 208 cm
Height:113 inches 287 cm
Weight:20000 lbs 9072 kg
Gauge:60.5 inches 153 cm
