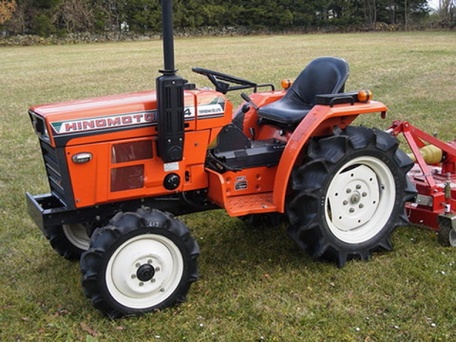

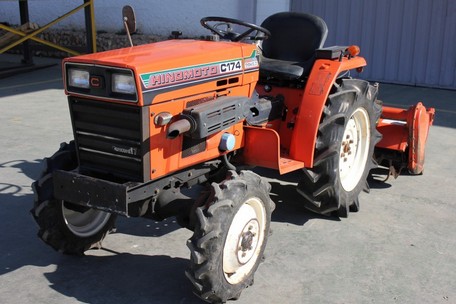

Hinomoto C174

Production: 1980 - 1985

Production
Manufacturer:	Hinomoto
Type:	Compact Utility tractor
Factory:	Japan

Variants

2WD

4WD

Hinomoto C174 Power
Engine (gross):	20 hp 14.9 kW
Engine (net):	18 hp 13.4 kW
PTO (claimed):	15 hp 11.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	manual
Brakes:	drum
Cab:	Open operator station.
Transmission:	9-speed synchronized

Hydraulics
Type:	open center

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	generator
Charging amps:	12.5
Battery volts:	12

Engine Detail
Toyosha CS100
diesel
3-cylinder
liquid-cooled
Displacement:	61.27 ci 1.0 L
Bore/Stroke:	2.874x3.15 inches 73 x 80 mm
Power (gross):	20 hp 14.9 kW
Rated RPM:	2500
Torque:	40.5 lb-ft 54.9 Nm
Torque RPM:	1800
Starter:	electric
Starter volts:	12
Starter power:	1.07 hp 0.8 kW
Oil capacity:	2.3 qts 2.2 L
Coolant capacity:	3.2 qts 3.0 L

Transmission
Type:	synchronized
Gears:	9 forward and 3 reverse
Clutch:	dry disc
Oil capacity:	18 qts 17.0 L

Dimensions
Wheelbase:	50.8 inches 129 cm
Length:	82.7 inches 210 cm
Width:	40.75 inches 103 cm
Height (steering wheel):	47.2 inches 119 cm
Weight:	1600 lbs 725 kg
Ground clearance:	11 inches 27 cm
