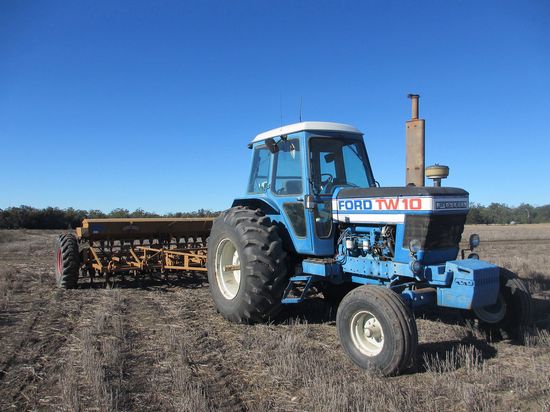

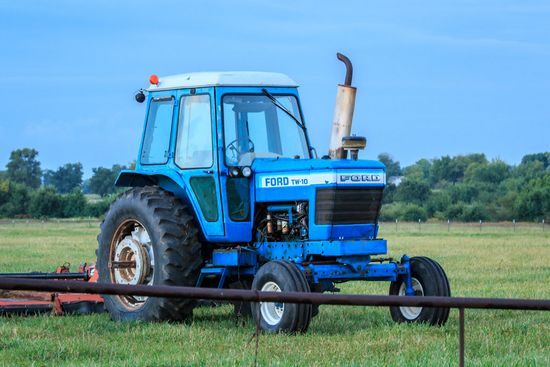

Ford TW-10
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Ford |
| Type: | Row-Crop tractor |
| Factory: | Romeo, Michigan, USA |
| Original price: | $36,160 |
Ford TW-10 Power | |
| Engine (gross): | 127.9 hp 95.4 kW |
| Engine: | 123 hp 91.7 kW |
| Drawbar (claimed): | 97.4 hp 72.6 kW |
| PTO (claimed): | 110 hp 82.0 kW |
| Drawbar (tested): | 94.34 hp 70.3 kW |
| PTO (tested): | 110.24 hp 82.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet discs |
| Cab: | Cab optional with available air-conditioning. |
| Transmissions: | 16-speed |
| 8-speed | |
Capacity | |
| Fuel: | 33 gal 124.9 L |
| 25 gal 94.6 L (auxiliary tank) | |
| Hydraulic system: | 18.25 gal 69.1 L |
| 19.75 gal 74.8 L (Dual Power) | |
Hydraulics | |
| Type: | open center |
| Capacity: | 18.25 gal 69.1 L |
| 19.75 gal 74.8 L (Dual Power) | |
| Pressure: | 2500 psi 172.4 bar |
| Pump flow: | 16 gpm 60.6 lpm |
| 8 gpm 30.3 lpm (service pump) | |
| Steering flow: | 4.2 gpm 15.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 6,000 lbs 2721 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
TW-10 Serial Numbers | |
| Location: | Under right grill panel |
| 1979: | C592200 |
| 1980: | C635700 |
| 1981: | C660700 |
| 1982: | C682200 |
| 1983: | C694500 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 72 |
| Battery volts: | 12 |
| Battery AH: | 128 |
Engine Detail | |
| Ford | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 401 ci 6.6 L |
| Bore/Stroke: | 4.40x4.40 inches 112 x 112 mm |
| Power: | 123 hp 91.7 kW |
| Power (gross): | 127.9 hp 95.4 kW |
| Air cleaner: | dry with precleaner |
| Compression: | 16.3:1 |
| Rated RPM: | 2300 |
| Torque: | 314 lb-ft 425.8 Nm |
| Torque RPM: | 1800 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Coolant capacity: | 21 qts 19.9 L |
| 22.5 qts 21.3 L (with heater) | |
| Intake valve clearance: | 0.014-0.016 inches 0.356 mm |
| Exhaust valve clearance: | 0.017-0.019 inches 0.432 mm |
Dimensions | |
| Wheelbase: | 109.7 inches 278 cm |
| 94 inches 238 cm (short) | |
| Length: | 175.6 inches 446 cm |
| Width: | 104.32 inches 264 cm |
| Ground clearance: | 25.2 inches 64 cm (2WD) |
| 16 inches 40 cm (4WD) | |
| Rear axle: | Bar: 84 inch length 2133 mm |
| Rear axle: | Bar: 105 inch length 2667 mm |
| Front tread: | 60 to 84 inches 152 to 213 cm |
| Rear tread: | 60 to 90 inches 152 to 228 cm |
| Rear tread: | 60 to 110 inches 152 to 279 cm |
