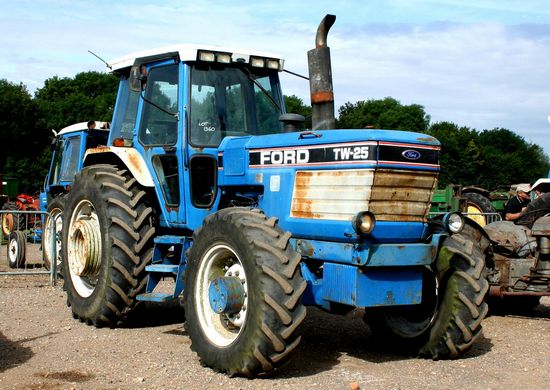

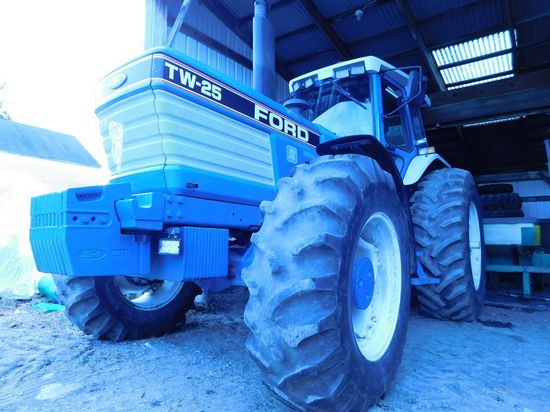

Ford TW-25
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Ford |
| Type: | Row-Crop tractor |
| Factory: | Antwerp, Belgium |
Ford TW-25 Power | |
| Engine (gross): | 160 hp 119.3 kW |
| Engine: | 156 hp 116.3 kW |
| PTO (claimed): | 140 hp 104.4 kW |
| Drawbar (tested): | 124.84 hp 93.1 kW |
| PTO (tested): | 140.68 hp 104.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | hydraulic rear |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | ROPS. Cab optional. |
| Transmissions: | 16-speed partial power shift |
| 24-speed | |
Capacity | |
| Fuel: | 75 gal 283.9 L |
| 100 gal 378.5 L (Series II) | |
| Hydraulic system: | 18.25 gal 69.1 L |
Hydraulics | |
| Type: | open center*With closed-center remote valves. |
| Capacity: | 18.25 gal 69.1 L |
| Pressure: | 2500 psi 172.4 bar |
| Valves: | 2 |
| Pump flow: | 15.3 gpm 57.9 lpm |
| 23.8 gpm 90.1 lpm (Series II) | |
| Total flow: | 27.5 gpm 104.1 lpm |
| Steering flow: | 4.2 gpm 15.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| III*Optional | |
| Control: | position control and lower-link draft sensing |
| Rear lift (at 24"/610mm): | 7150 lbs 3243 kg |
| 9450 lbs 4286 kg *With optional auxiliary rams. | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@1861 1000@1918 |
TW-25 Serial Numbers | |
| Location: | Under forward right grill panel |
| 1983: | C694500 |
| 1984: | C707400 |
| 1985: | C732600 |
| 1986: | A915854 |
| 1987: | A917560 |
| 1988: | A919438 |
| 1989: | A922535 |
| 1990: | A925099 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 72 |
| Battery volts: | 12 |
| Battery AH: | 128 |
Engine Detail | |
| Ford | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 401 ci 6.6 L |
| Bore/Stroke: | 4.4x4.4 inches 112 x 112 mm |
| Power: | 156 hp 116.3 kW |
| Power (gross): | 160 hp 119.3 kW |
| Fuel system: | indirect injection |
| Air cleaner: | dual paper elements |
| Pre-heating: | ether injection |
| coolant heater | |
| Compression: | 15.6:1 |
| Rated RPM: | 2200 |
| Torque: | 424 lb-ft 574.9 Nm |
| Torque RPM: | 1600 |
| Starter volts: | 12 |
| Oil capacity: | 20 qts 18.9 L |
| Coolant capacity: | 23 qts 21.8 L |
Dimensions | |
| 2WD Wheelbase: | 108 inches 274 cm |
| 4WD Wheelbase: | 110.73 inches 281 cm |
| Length: | 178.7 inches 453 cm |
| Width: | 83.6 inches 212 cm |
| Ground clearance: | 16.4 inches 41 cm |
| 2WD Front tread: | 60 to 84 inches 152 to 213 cm |
| 4WD Front tread: | 65 to 84 inches 165 to 213 cm |
| Rear tread: | 64 to 100 inches 162 to 254 cm (manual) |
| Rear tread: | 64 to 116 inches 162 to 294 cm (power) |
