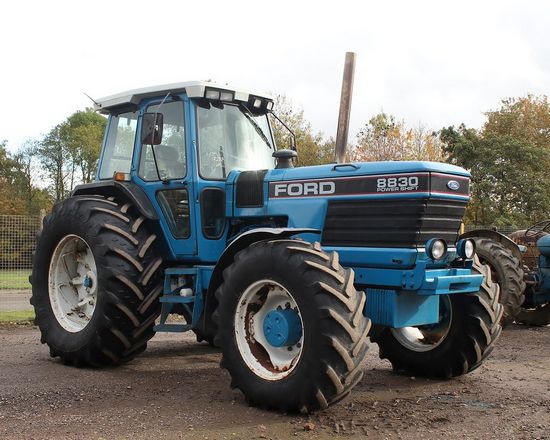

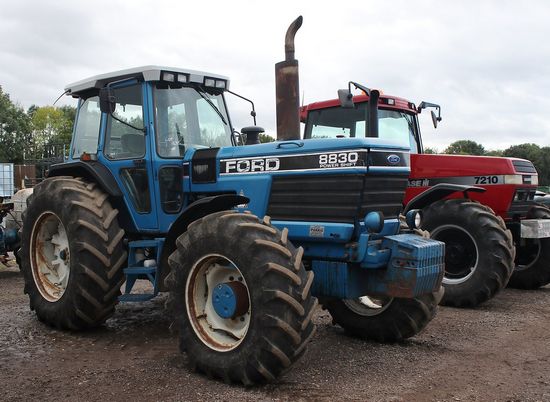

Ford 8830
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Ford |
| Type: | Row-Crop tractor |
| Factory: | Antwerp, Belgium |
| Original price: | $63,000 (1993 ) |
Ford 8830 Power | |
| PTO (claimed): | 170 hp 126.8 kW |
| Drawbar (tested): | 145.69 hp 108.6 kW |
| PTO (tested): | 171.12 hp 127.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | Power disc |
| Cab: | Optional cab with heat and air-conditioning. |
| Transmissions: | 18-speed |
| 16-speed | |
Capacity | |
| Fuel: | 75 gal 283.9 L |
| 24.5 gal 92.7 L (auxiliary tank) | |
| Steering: | 2 qts 1.9 L |
| Front hubs: | 0.8 qts 0.8 L (each) |
| Front diff.: | 7.9 qts 7.5 L |
Hydraulics | |
| Type: | open center gear pump, dual pumps optional |
| Pressure: | 2500 psi 172.4 bar |
| Valves: | 2 to 4 |
| Pump flow: | 20 gpm 75.7 lpm |
| 28.6 gpm 108.3 lpm *Dual pumps | |
| SCV flow: | 16.9 gpm 64.0 lpm |
| 19 gpm 71.9 lpm *Dual pumps | |
| Steering cap.: | 2 qts 1.9 L |
| Steering press.: | 2025 psi 139.6 bar |
Tractor hitch | |
| Rear Type: | 3/2 |
| Control: | position and draft control |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
8830 Serial Numbers | |
| Location: | Tractor's rear axle. |
| 1990: | A925439 |
| 1991: | A928924 |
| 1992: | A930626 |
| 1993: | A931957 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| Battery volts: | 12 |
Engine Detail | |
| Ford | |
| intercooled turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 401 ci 6.6 L |
| Bore/Stroke: | 4.40x4.40 inches 112 x 112 mm |
| Compression: | 15.6:1 |
| Rated RPM: | 2200 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Coolant capacity: | 22.8 qts 21.6 L |
| 24.4 qts 23.1 L (with heater) | |
| Intake valve clearance: | 0.014-0.016 inches 0.356 mm (cold) |
| Exhaust valve clearance: | 0.017-0.019 inches 0.432 mm (cold) |
Dimensions | |
| Wheelbase: | 111 inches 281 cm |
| Length: | 191 inches 485 cm |
| Width: | 82 inches 208 cm |
| Ground clearance: | 16.4 inches 41 cm |
