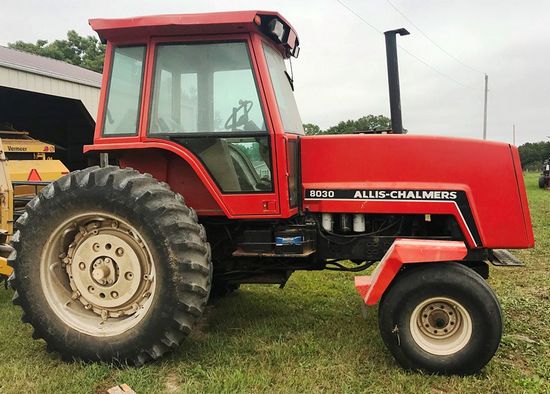

Allis Chalmers 8030
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Allis Chalmers |
| Type: | Row-Crop tractor |
| Factory: | West Allis, Wisconsin, USA |
| Total built: | 2,328 |
| Original price: | $52,398 |
Variants | |
| row-crop | |
| high-crop |
Allis Chalmers 8030 Power | |
| Drawbar (tested): | 115.22 hp 85.9 kW |
| PTO (tested): | 133.75 hp 99.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | foot-button |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet discs |
| Cab: | Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player. |
| Transmissions: | 16-speed partial power shift |
| 20-speed partial power shift | |
| 12-speed Allis-Chalmers | |
Capacity | |
| Fuel: | 60 gal 227.1 L |
| 25 gal 94.6 L (optional tank) | |
| Rear diff.: | 66.8 qts 63.2 L |
Hydraulics | |
| Type: | closed-center load-sensitive |
| Valves: | 2 or 3 |
| Pump flow: | 22 gpm 83.3 lpm |
| 13.5 gpm 51.1 lpm (transmission) | |
| Total flow: | 45 gpm 170.3 lpm |
| Steering flow: | 9.5 gpm 36.0 lpm |
Tractor hitch | |
| Rear Type: | III/II |
| Rear lift (at 24"/610mm): | 6,680 lbs 3030 kg |
| 8,200 lbs 3719 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
8030 Serial Numbers | |
| Location: | Above PTO shield |
| 1981: | 1001 |
| 1982: | 1009 |
| 1983: | 2093 |
| 1984: | 2701 |
| 1985: | 3146 |
| Final: | 3328 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 100 |
| Battery volts: | 12 |
Engine Detail | |
| Allis Chalmers 670T | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement: | 426 ci 7.0 L |
| Bore/Stroke: | 4.25x5.00 inches 108 x 127 mm |
| Air cleaner: | dry |
| Compression: | 15.5:1 |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
| Oil capacity: | 19 qts 18.0 L |
| Coolant capacity: | 31 qts 29.3 L |
Dimensions | |
| Wheelbase: | 106 inches 269 cm (2WD) |
| 96 inches 243 cm (4WD) | |
| Length: | 187 inches 474 cm |
| Width: | 93.4 inches 237 cm |
| Ground clearance: | 17.5 inches 44 cm (4WD front axle) |
| 21 inches 53 cm ( 2WD front axle) | |
| 28 inches 71 cm (rear axle) | |
