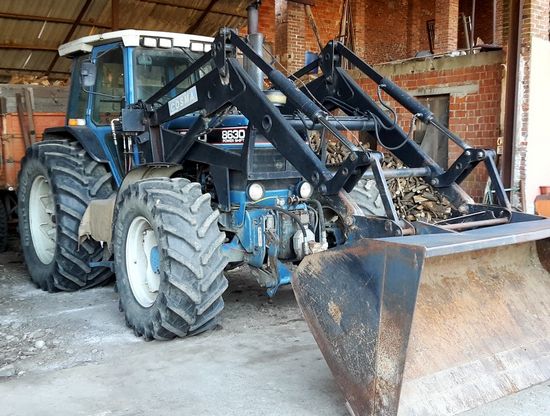

Ford 8630

Production: 1992 - 1997

Production
Manufacturer:	Ford (a part of New Holland)
Factory:	Curitiba, Brazil
The Brazillian-built Ford 8630 is similar to the Fiat 160-90.

Ford 8630 Power
Engine:	160 hp 119.3 kW
PTO (claimed):	140 hp 104.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	hydraulic
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post ROPS. Cab optional with air-conditioning.
Transmissions:	12-speed partially synchronized
24-speed creeper

Capacity
Fuel:	74 gal 280.1 L
Hydraulic system:	15.7 gal 59.4 L
Front axle:	13.6 qts 12.9 L

Hydraulics
Capacity:	15.7 gal 59.4 L
Pressure:	2503 psi 172.6 bar
Pump flow:	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift (at 24"/610mm):	14650 lbs 6645 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@1000

Electrical
Charging system:	alternator
Charging amps:	65
Battery volts:	12
Battery AH:	165

Engine Detail
Fiat 8365.25
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement:	494.4 ci 8.1 L
Bore/Stroke:	4.53x5.12 inches 115 x 130 mm
Power:	160 hp 119.3 kW
Fuel system:	direct injection
Air cleaner:	dual stage dry
Compression:	15.5:1
Rated RPM:	2200
Torque:	435.2 lb-ft 590.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12
Oil capacity:	19.4 qts 18.4 L
Coolant capacity:	28.5 qts 27.0 L

Dimensions
Wheelbase:	113.6 inches 288 cm
Length:	174 inches 441 cm
Width:	112.7 inches 286 cm
Shiping weight:	9600 lbs 4354 kg
Ballasted weight:	16810 lbs 7625 kg
Front tread:	70.9 to 86.6 inches 180 to 219 cm
Rear tread:	63.8 to 86.6 inches 162 to 219 cm
