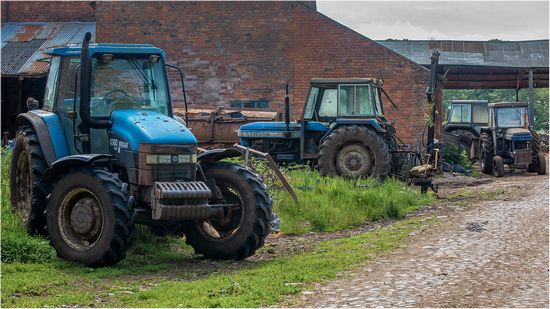

Ford-New Holland 8360
Contents:
Production | |
| Manufacturer: | Ford-New Holland |
| Factory: | England |
| Original price: | $56,000 (1999) |
Ford-New Holland 8360 Power | |
| PTO (claimed): | 115 hp 85.8 kW |
| Drawbar (tested): | 100 hp 74.6 kW |
| PTO (tested): | 119 hp 88.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | Rear (2WD) or front and rear (4WD) with push-button operation. Manual and automatic modes. |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Two-post ROPS. Optional cab. |
| Transmissions: | 23-speed partially synchronized |
| 17-speed partial power shift | |
| 18-speed partial power shift | |
Capacity | |
| Fuel: | 85 gal 321.7 L |
| Hydraulic system: | 23.7 gal 89.7 L (18-speed) |
| 19.2 gal 72.7 L (23-speed) | |
| Front hubs: | 2.3 qts 2.2 L (each) |
| Front diff.: | 3.7 qts 3.5 L |
Hydraulics | |
| Type: | closed center load sensing |
| Capacity: | 23.7 gal 89.7 L (18-speed) |
| 19.2 gal 72.7 L (23-speed) | |
| Pressure: | 2755 psi 190.0 bar |
| Valves: | 2 to 4 |
| Pump flow: | 26 gpm 98.4 lpm |
| Steering flow: | 16.4 gpm 62.1 lpm |
| Steering press.: | 2465 psi 170.0 bar |
Tractor hitch | |
| Rear Type: | II/III |
| Rear lift (at 24"/610mm): | 12,000 lbs 5443 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 70 |
| 100 (with cab) | |
| Batteries: | 2 |
| Battery CCA: | 900 |
| Battery volts: | 12 |
Engine Detail | |
| New Holland Genesis | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 456 ci 7.5 L |
| Bore/Stroke: | 4.5x5.0 inches 114 x 127 mm |
| Compression: | 17.5:1 |
| Rated RPM: | 2200 |
| Idle RPM: | 700-2420 |
| Operating RPM: | 1500-2200 |
| Torque RPM: | 1400 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 4.9 hp 3.7 kW |
| Coolant capacity: | 25.4 qts 24.0 L (ROPS) |
| 27.5 qts 26.0 L (cab) | |
| Intake valve clearance: | 0.016 inches 0.406 mm (cold) |
| Exhaust valve clearance: | 0.018 inches 0.457 mm (cold) |
Dimensions | |
| Wheelbase: | 108.3 inches 275 cm (2WD) |
| 107.2 inches 272 cm (4WD) | |
| Length: | 180 inches 457 cm (2WD) |
| 182 inches 462 cm (4WD) | |
| Width: | 84 inches 213 cm (min) |
| Clearance (front axle): | 23.1 inches 58 cm (2WD) |
| 20 inches 50 cm (4WD) | |
| Clearance (drawbar): | 15 inches 38 cm |
| Front tread: | 60.7 to 86.1 inches 154 to 218 cm (2WD) |
| Front tread: | 60.0 to 88.0 inches 152 to 223 cm (4WD) |
| Rear tread: | 60.2 to 87.9 inches 152 to 223 cm (manual) |
| Rear tread: | 59.8 to 90.6 inches 151 to 230 cm (power) |
| Rear tread: | 60.2 to 120 inches 152 to 304 cm (duals) |
