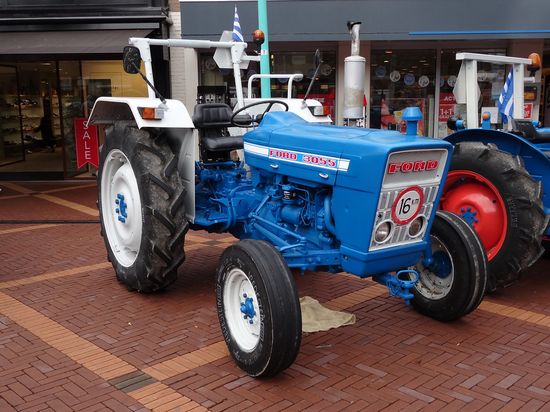

Ford 3055

Production: 1970 - 1974

Production
Manufacturer:	Ford
Type:	Utility tractor
Factory:	Antwerp, Belgium

Ford 3055 Power
Engine:	55 hp 41.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Differential lock:	mechanical rear
Steering:	manual
Brakes:	wet disc
Cab:	Open operator station.
Transmission:	8-speed gear

Capacity
Fuel:	13.2 gal 50.0 L
Hydraulic system:	7 gal 26.5 L

Hydraulics
Capacity:	7 gal 26.5 L

Tractor hitch
Rear Type:	I
II
Control:	position and draft control

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@1800

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	128

Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
Displacement:	183 ci 3.0 L
Bore/Stroke:	4.20x4.40 inches 107 x 112 mm
Power:	55 hp 41.0 kW
Fuel system:	direct injection
Rated RPM:	2200
Starter volts:	12
Oil capacity:	8 qts 7.6 L
Coolant capacity:	14 qts 13.2 L

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	279.4mm dry dsic

Dimensions
Wheelbase:	78 inches 198 cm
Length:	128 inches 325 cm
Width:	67.3 inches 170 cm
Height (steering wheel):	61.8 inches 156 cm
Height (hood):	57.9 inches 147 cm
Weight:	4409 lbs 1999 kg
Front tread:	52 to 80 inches 132 to 203 cm
Rear tread:	52 to 80 inches 132 to 203 cm
