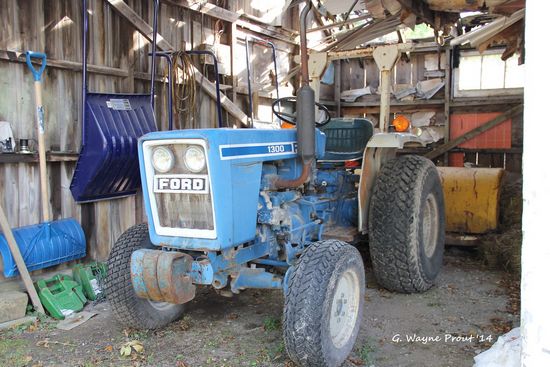

Ford 1300
Type: Compact Utility Tractors
Contents:
Production | |
| Distributor: | Ford |
| Manufacturer: | Shibaura |
| Type: | Compact Utility tractor |
| Factory: | Japan |
| Original price: | $6,257 (1982 ) |
Ford 1300 Power | |
| Engine (gross): | 16 hp 11.9 kW |
| Engine: | 15.3 hp 11.4 kW |
| PTO (claimed): | 13.5 hp 10.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | manual |
| Brakes: | differential mechanical drum |
| Cab: | Two-post ROPS. |
| Transmission: | 12-speed |
Capacity | |
| Fuel: | 5.8 gal 22.0 L |
| Hydraulic system: | 5.3 gal 20.1 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 5.3 gal 20.1 L |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at ends): | 1432 lbs 649 kg |
Power Take-off (PTO) | |
| Rear PTO: | transmission |
| Rear RPM: | 540 |
| Front PTO: | optional |
1300 Serial Numbers | |
| Location: | Transmission housing, left side |
| 1979: | U300001 |
| 1980: | U302697 |
| 1981: | U303446 |
| 1982: | --- |
| 1983: | U304962 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 20 |
| Battery volts: | 12 |
| Battery AH: | 72 |
Engine Detail | |
| Shibaura LEK802D | |
| diesel | |
| 2-cylinder | |
| liquid-cooled | |
| Displacement: | 49.1 ci 0.8 L |
| Bore/Stroke: | 3.15x3.15 inches 80 x 80 mm |
| Power: | 15.3 hp 11.4 kW |
| Power (gross): | 16 hp 11.9 kW |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Compression: | 23:1 |
| Rated RPM: | 2700 |
| Starter volts: | 12 |
| Oil capacity: | 4.5 qts 4.3 L |
| Coolant capacity: | 4.2 qts 4.0 L |
Transmission | |
| Gears: | 12 forward and 4 reverse |
| Oil capacity: | 21 qts 19.9 L |
| Three speeds, plus reverse, in four ranges. | |
Dimensions | |
| Wheelbase: | 56.7 inches 144 cm |
| Length: | 105.6 inches 268 cm |
| Width: | 49.7 inches 126 cm |
| Height (ROPS): | 83.8 inches 212 cm |
| Height (exhaust): | 71.9 inches 182 cm |
| 2WD Weight: | 1873 lbs 849 kg |
| 4WD Weight: | 2139 lbs 970 kg |
| 2WD Ground clearance: | 13 inches 33 cm |
| 4WD Ground clearance: | 11.8 inches 29 cm |
| 2WD Front tread: | 41.3 to 43.3 inches 104 to 109 cm |
| 4WD Front tread: | 39.8 inches 101 cm |
| Rear tread: | 41.3 to 47.3 inches 104 to 120 cm |
