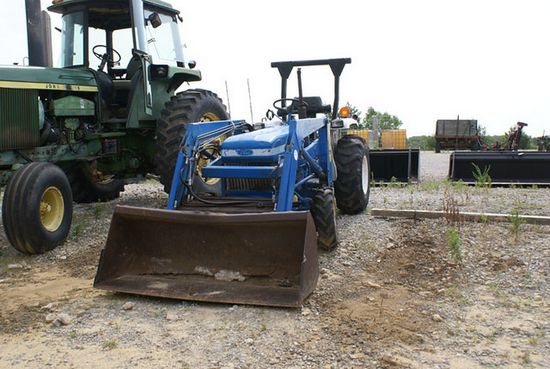

Ford 1310

Production: 1983 - 1986

Production
Distributor:	Ford
Manufacturer:	Shibaura
Type:	Compact Utility tractor
Factory:	Japan
Original price:	$8,000 (1986 )

Ford 1310 Power
Engine (net):	19 hp 14.2 kW
PTO (claimed):	16.5 hp 12.3 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	spur gear
Differential lock:	mechanical rear
Steering:	manual
Brakes:	differential mechanical drum
Cab:	Two-post fixed ROPS.
Transmissions:	12-speed unsynchronized gear
12-speed partially synchronized

Capacity
Fuel:	6.9 gal 26.1 L
Hydraulic system:	4.5 gal 17.0 L

Hydraulics
Type:	open center
Capacity:	4.5 gal 17.0 L
Pressure:	2133 psi 147.1 bar
Total flow:	6.4 gpm 24.2 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1432 lbs 649 kg

Power Take-off (PTO)
Rear PTO:	transmission
live*Optional
Rear RPM:	540 (1.375)
Engine RPM:	540@2425

1310 Serial Numbers
Location:	On transmission housing, left side.
1983:	UE00001
1984:	UE01019
1985:	UE02438
1986:	UE04444

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	35
Charging volts:	12
Battery volts:	12
Battery AH:	72

Engine Detail
Shibaura S753
diesel
3-cylinder
liquid-cooled
Displacement:	58.2 ci 1.0 L
Bore/Stroke:	2.95x2.83 inches 75 x 72 mm
Air cleaner:	dry
Pre-heating:	glow plugs
Compression:	23:1
Rated RPM:	2800
Torque:	39 lb-ft 52.9 Nm
Torque RPM:	1800
Starter volts:	12
Oil capacity:	4 qts 3.8 L
Coolant capacity:	2.8 qts 2.6 L

Dimensions
Wheelbase:	63 inches 160 cm
Length:	109.3 inches 277 cm
2WD Width:	49.6 inches 125 cm
4WD Width:	55.7 inches 141 cm
2WD Weight:	2063 lbs 935 kg
4WD Weight:	2261 lbs 1025 kg
2WD Ground clearance:	13 inches 33 cm
4WD Ground clearance:	10.6 inches 26 cm
2WD Front tread:	39.4 to 50 inches 100 to 127 cm
4WD Front tread:	45.7 inches 116 cm
2WD Rear tread:	41.2 to 52 inches 104 to 132 cm
4WD Rear tread:	45.5 inches 115 cm
