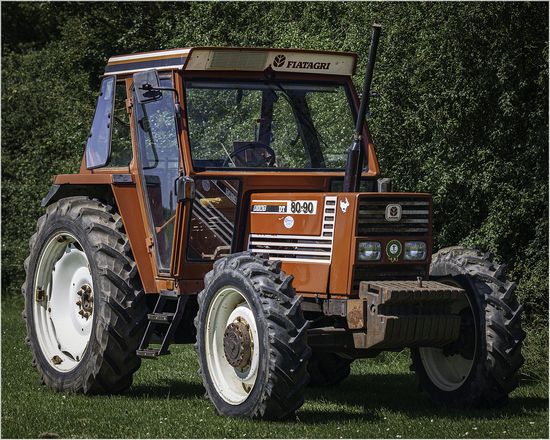

Fiat 80-90

Production: 1984 - 1992

Production
Manufacturer:	Fiat
Type:	Utility tractor

Variants
80-90:	2WD
80-90DT:	4WD

Fiat 80-90 Power
Engine:	80 hp 59.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Differential lock:	hydraulic rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with heater.
Transmissions:	12-speed
12-speed shuttle
20-speed creeper
24-speed

Hydraulics
Pressure:	2755 psi 190.0 bar
Pump flow:	9.1 gpm 34.4 lpm

Tractor hitch
Rear Type:	II/I
Rear lift:	7716 lbs 3499 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	280mm dry disc
Rear RPM:	540
540/1000
Engine RPM:	540@2200 1000@2375

Engine Detail
Fiat 8045.05
diesel
4-cylinder
liquid-cooled
Displacement:	238.5 ci 3.9 L
Bore/Stroke:	4.09x4.53 inches 104 x 115 mm
Power:	80 hp 59.7 kW
Fuel system:	direct injection
Rated RPM:	2500
Starter type:	electric

Dimensions
Wheelbase:	92.1 inches 233 cm
Length:	144.1 inches 366 cm
Height:	103.9 inches 263 cm
2WD Weight:	6636 lbs 3010 kg
4WD Weight:	7540 lbs 3420 kg
