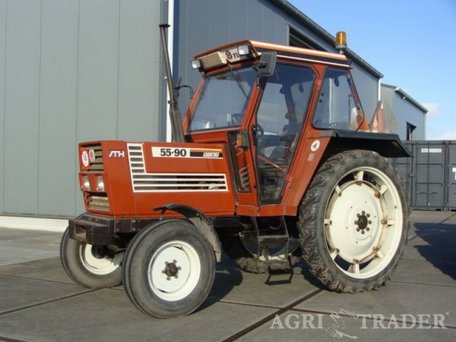

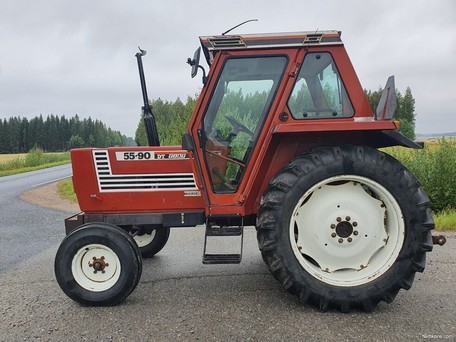

Fiat 55-90

Production: 1984 - 1992

Production
Manufacturer:	Fiat
Type:	Utility tractor

Variants
55-90:	2WD
55-90DT:	4WD

Fiat 55-90 Power
Engine:	55 hp 41.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Differential lock:	hydraulic rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with heater.
Transmissions:	12-speed
12-speed shuttle
20-speed creeper

Hydraulics
Pump flow:	8.9 gpm 33.7 lpm

Tractor hitch
Rear Type:	II/I
Rear lift:	6393 lbs 2899 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	280mm dry disc
Rear RPM:	540
540/1000
Engine RPM:	540@2200 1000@2375

Engine Detail
Fiat 8035.06
diesel
3-cylinder
liquid-cooled
Displacement:	165.4 ci 2.7 L
Bore/Stroke:	3.94x4.53 inches 100 x 115 mm
Power:	55 hp 41.0 kW
Air cleaner:	oil bath
Rated RPM:	2500
Starter type:	electric

Dimensions
2WD Wheelbase:	87.8 inches 223 cm
4WD Wheelbase:	86.6 inches 219 cm
Length:	132.3 inches 336 cm
2WD Height (cab):	98.4 inches 249 cm
4WD Height (cab):	99.6 inches 252 cm
2WD Weight:	6526 lbs 2960 kg
4WD Weight:	6923 lbs 3140 kg
2WD Front tread:	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread:	61 to 74 inches 154 to 187 cm
Rear tread:	59.1 to 78.7 inches 150 to 199 cm
