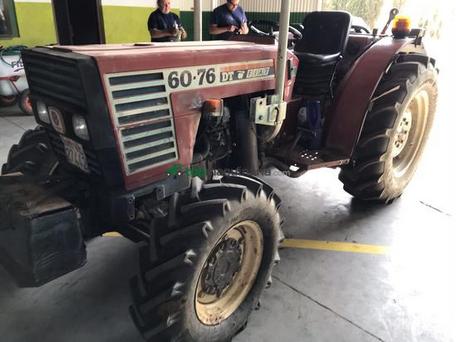

Fiat 60-76

Production: 1990 - 1992

Production
Manufacturer:	Fiat
Type:	Orchard/Vineyard tractor
Original price:	$20,800 (1990 )

Fiat 60-76 Power
Engine:	59.1 hp 44.1 kW
PTO (claimed):	51 hp 38.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Trailer brakes:	hydraulic*Optional
Cab:	Two-post mid-mount ROPS.
Transmissions:	12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper shuttle

Hydraulics
Type:	open center
Pressure:	2697 psi 186.0 bar
Pump flow:	8.7 gpm 32.9 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and lower-link draft control

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
540/1000 (1.375)*Optional
Engine RPM:	540@2200 1000@2380

60-76 Serial Numbers
Location:	Serial number plate below the steering column.

Electrical
Ground:	negative
Charging system:	alternator
Watts (rated):	400
Battery volts:	12
Battery AH:	100

Engine Detail
Fiat 8035.05
diesel
3-cylinder
liquid-cooled
Displacement:	178.9 ci 2.9 L
Bore/Stroke:	4.09x4.53 inches 104 x 115 mm
Power:	59.1 hp 44.1 kW
Air cleaner:	dry
Compression:	17:1
Rated RPM:	2500
Firing order:	1-2-3
Starter:	electric
Starter volts:	12
Intake valve clearance:	0.010 inches 0.254 mm (cold)
Exhaust valve clearance:	0.014 inches 0.356 mm (cold)

Dimensions
2WD Wheelbase:	74.3 inches 188 cm
4WD Wheelbase:	78.6 inches 199 cm
2WD Length:	116.1 inches 294 cm
4WD Length:	120.1 inches 305 cm
2WD Ground clearance:	16.7 inches 42 cm
4WD Ground clearance:	11 inches 27 cm
