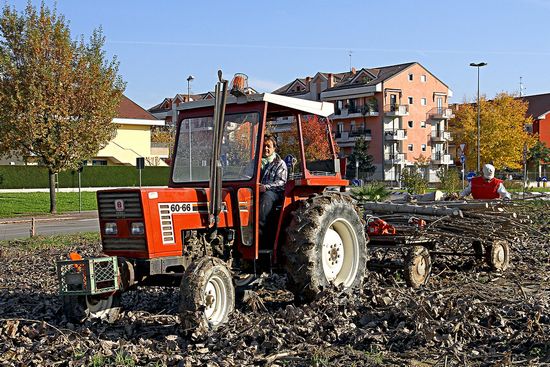

Fiat 60-66

Production: 1984 - 1996
Type: Utility Tractors

Contents:

Production

Manufacturer:Fiat
Type:Utility tractor

Fiat 60-66 Power

Engine:59.2 hp 44.1 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Steering:power
Transmission:12-speed

Hydraulics

Pump flow:9.11 gpm 34.5 lpm

Tractor hitch

Rear lift:6,395 lbs 2900 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

Iveco 8035.06
diesel
3-cylinder
liquid-cooled
Displacement:178.9 ci 2.9 L
Bore/Stroke:4.09x4.53 inches 104 x 115 mm
Power:59.2 hp 44.1 kW
Rated RPM:2500
Torque:149.73 lb-ft 203.0 Nm
Torque RPM:1500

Transmission

Gears:12 forward and 4 reverse

Dimensions

Wheelbase:85.83 inches 218 cm
Length:143 inches 363 cm
Height:96 inches 243 cm
Weight:6,306 lbs 2860 kg
