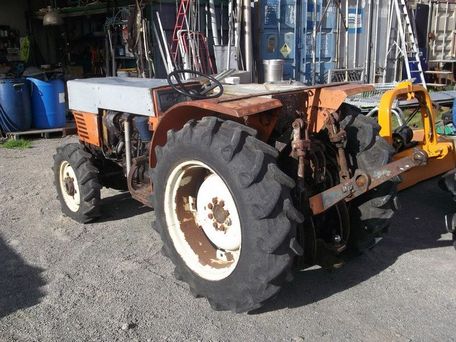

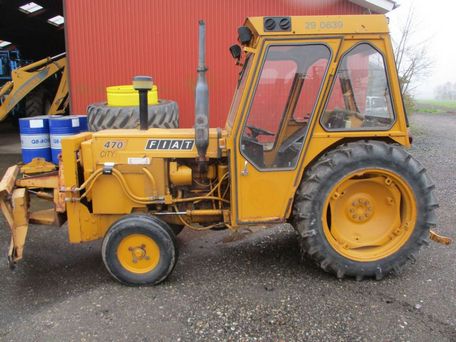

Fiat 470

Mechanical
Chassis:	4x4 MFWD 4WD
Cab:	Open operator station.
Transmissions:	6-speed
9-speed creeper

470 Serial Numbers
Location:	Serial number on the left side of the tractor chassis.

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	92

Engine Detail
Fiat
diesel
3-cylinder
liquid-cooled
Displacement:	142.8 ci 2.3 L
Bore/Stroke:	3.74x4.331 inches 95 x 110 mm
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	73.4 inches 186 cm
4WD Wheelbase:	70.2 inches 178 cm
2WD Length:	124 inches 314 cm
4WD Length:	124.6 inches 316 cm
Width:	48 inches 121 cm
2WD Weight:	3120 lbs 1415 kg
4WD Weight:	3373 lbs 1529 kg
Clearance (front axle):	14.6 inches 37 cm
Front tread:	30.9 to 38.8 inches 78 to 98 cm
Rear tread:	29.1 to 48.8 inches 73 to 123 cm
