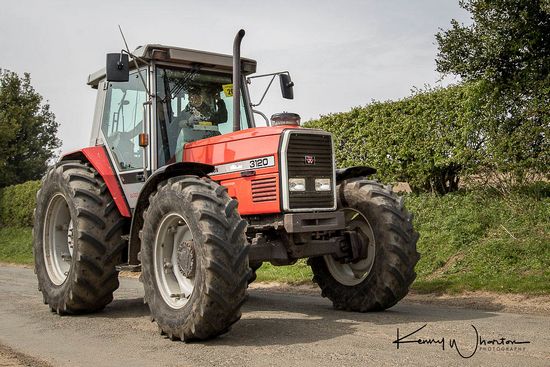

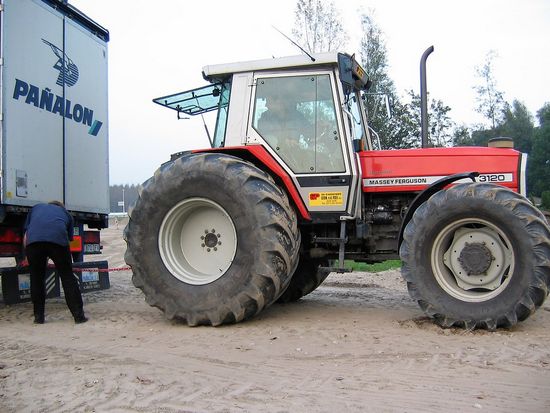

Massey Ferguson 3120

Production: 1990 - 1992

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Beauvais, France
Original price:	$48,000 (1992)

Massey Ferguson 3120 Power
PTO (claimed):	100 hp 74.6 kW
Drawbar (tested):	91.6 hp 68.3 kW
PTO (tested):	104.2 hp 77.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Cab standard Autotronic standard. Optional Datatronics.
Transmission:	32-speed two-speed power shift

Capacity
Fuel:	45 gal 170.3 L
Hydraulic system:	16.9 gal 64.0 L

Hydraulics
Type:	open center
Capacity:	16.9 gal 64.0 L
Pressure:	2610 psi 180.0 bar
Valves:	2
Pump flow:	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type:	II
Control:	position and electronic draft control
Rear lift (at 24"/610mm):	6430 lbs 2916 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

3120 Serial Numbers
Location:	Behind the tractor cab on the right side.
1990:	R001001
1991:	S001001
1992:	A001001

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins Quadram 1000
diesel
6-cylinder
liquid-cooled
Displacement:	365 ci 6.0 L
Bore/Stroke:	3.94x5.00 inches 100 x 127 mm
Cooling system:	viscous fan drive
Air cleaner:	dual dry
Rated RPM:	2200
Starter volts:	12
Oil capacity:	20 qts 18.9 L
Coolant capacity:	26.4 qts 25.0 L

Transmission
Type:	two-speed power shift
Gears:	32 forward and reverse
Clutch:	330mm disc
Sixteen-speed synchronized shuttle transmission with two-speed power shift.

Dimensions
2WD Wheelbase:	106.1 inches 269 cm
4WD Wheelbase:	106.2 inches 269 cm
2WD Length:	170 inches 431 cm
4WD Length:	176 inches 447 cm
Width:	78 inches 198 cm
2WD Height (cab):	107 inches 271 cm
4WD Height (cab):	109 inches 276 cm
2WD Weight:	10,329 lbs 4685 kg
4WD Weight:	10,869 lbs 4930 kg
Ground clearance:	17 inches 43 cm
