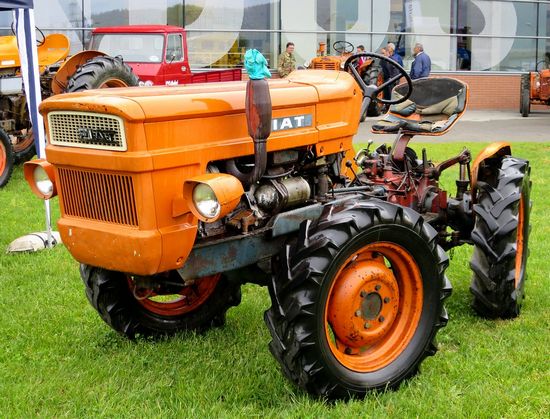

Fiat 250
Contents:
Production | |
| Manufacturer: | Fiat |
Fiat 250 Power | |
| Engine: | 25 hp 18.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 6-speed gear |
Hydraulics | |
| Pump flow: | 2.5 gpm 9.5 lpm |
Tractor hitch | |
| Rear Type: | I |
| Rear lift: | 1697 lbs 769 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540 (1.375) |
250 Serial Numbers | |
| Location: | Left side of tractor frame. |
Engine Detail | |
| Fiat 852 | |
| diesel | |
| 2-cylinder | |
| liquid-cooled | |
| Displacement: | 95.2 ci 1.6 L |
| Bore/Stroke: | 3.74x4.33 inches 95 x 110 mm |
| Power: | 25 hp 18.6 kW |
| Rated RPM: | 2250 |
| Starter volts: | 12 |
Transmission | |
| Type: | gear |
| Gears: | 6 forward and 2 reverse |
| Three gears (1-3), plus reverse (R), in two ranges (low/high). | |
Dimensions | |
| Wheelbase: | 66.9 inches 169 cm |
| Length: | 115.75 inches 294 cm |
| Width: | 58.7 inches 149 cm |
| Height (hood): | 52.8 inches 134 cm |
| 2WD Weight: | 2690 lbs 1220 kg |
| 4WD Weight: | 3075 lbs 1394 kg |
