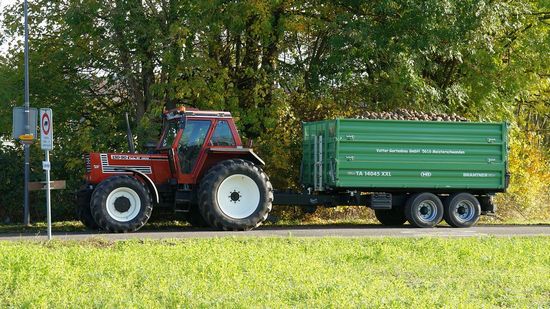

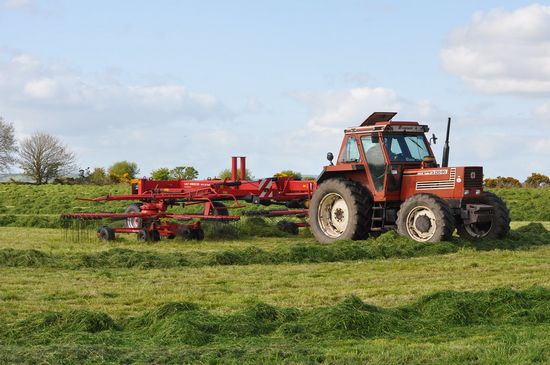

Fiat 130-90
Contents:
Production | |
| Manufacturer: | Fiat |
Variants | |
| 130-90: | 2WD |
| 130-90DT: | 4WD |
Fiat 130-90 Power | |
| Engine: | 130 hp 96.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary |
| Differential lock: | hydrostatic front and rear |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard with heat. Air-conditioning optional. |
| Transmissions: | 24-speed synchronized |
| 16-speed mechanical shuttle | |
| 24-speed partial power shift | |
Capacity | |
| Fuel: | 47.6 gal 180.2 L |
| Hydraulic system: | 11.8 gal 44.7 L (2WD) |
| 12.2 gal 46.2 L (4WD) | |
Hydraulics | |
| Capacity: | 11.8 gal 44.7 L (2WD) |
| 12.2 gal 46.2 L (4WD) | |
| Pressure: | 2489 psi 171.6 bar |
| Valves: | 2 to 3 |
| Pump flow: | 13.42 gpm 50.8 lpm |
Tractor hitch | |
| Rear Type: | 2 |
| Control: | position and draft control |
| Rear lift (at ends): | 14,660 lbs 6649 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/1000 |
| Front PTO: | independent |
| Clutch: | electro-magnetic |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Fiat 8065.25 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 357.6 ci 5.9 L |
| Bore/Stroke: | 4.09x4.53 inches 104 x 115 mm |
| Power: | 130 hp 96.9 kW |
| Rated RPM: | 2500 |
| Oil capacity: | 16.1 qts 15.2 L |
Dimensions | |
| Wheelbase: | 105.12 inches 267 cm |
| Length: | 164.57 inches 418 cm |
| Height: | 114.17 inches 289 cm |
| Weight: | 12766 lbs 5790 kg |
