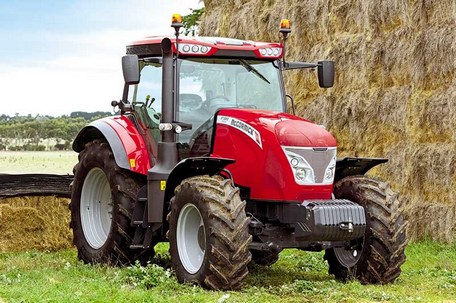

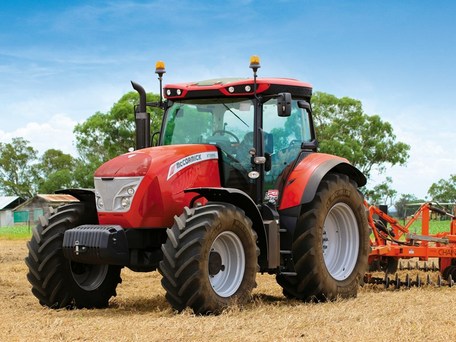

McCormick Intl X7.660
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | McCormick Intl (a part of Argo) |
| Type: | Row-Crop tractor |
McCormick Intl X7.660 Power | |
| Engine: | 151 hp 112.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | electro-hydraulic front and rear |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Trailer brakes: | hydraulic (optional) |
| pneumatic (optional) | |
| Cab: | Cab standard with air-conditioning. Optional electro-hydraulic cab suspension. |
| Transmissions: | 24-speed four-speed power shift |
| 40-speed | |
Hydraulics | |
| Type: | closed center |
| Valves: | 3 to 6 |
| Pump flow: | 32.5 gpm 123.0 lpm |
| Steering flow: | 11.6 gpm 43.9 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | lower link draft sensing |
| Rear lift: | 20500 lbs 9298 kg |
| Front Hitch: | optional |
| Front lift: | 7716 lbs 3499 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet discs |
| Rear RPM: | 540/540E/1000/1000E (1.375) |
| Front PTO: | independent (optional) |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| BetaPower | |
| turbocharged air-to-air intercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 410.6 ci 6.7 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Power: | 151 hp 112.6 kW |
| Maximum Power: | 165 hp 123.0 kW |
| 175 hp 130.5 kW (Power Plus) | |
| Fuel system: | electronic high-pressure common rail |
| Compression: | 17.1:1 |
| Rated RPM: | 2200 |
| Torque: | 466.1 lb-ft 632.0 Nm |
| Torque RPM: | 1500 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 108.3 inches 275 cm |
| Length: | 207.1 inches 526 cm |
| Width: | 95.7 inches 243 cm |
| Height (cab): | 115 inches 292 cm |
| Weight: | 14440 lbs 6549 kg |
| Ground clearance: | 21.7 inches 55 cm |
| Front axle: | 4WD |
| Front axle: | 4WD hydraulic suspension |
| Rear axle: | Flange |
| Rear axle: | Bar |
