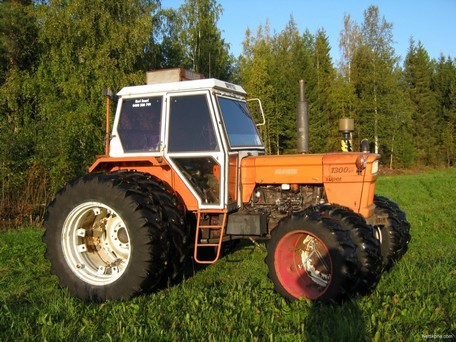

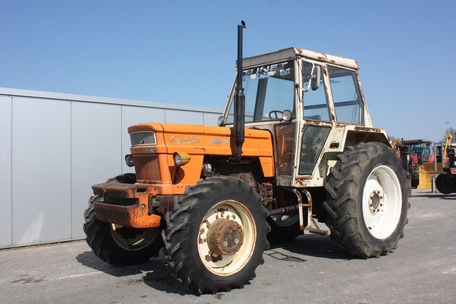

Fiat 1300

Production: 1973 - 1976

Contents:

Production

Manufacturer:Fiat

Fiat 1300 Power

Engine:130 hp 96.9 kW
PTO (claimed):115 hp 85.8 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD (1300DT)
Steering:power
Brakes:wet disc
Transmission:12-speed

Hydraulics

Pump flow:12.9 gpm 48.8 lpm

Tractor hitch

Rear Type:III/II
Rear lift:7386 lbs 3350 kg

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:540/1000

Engine Detail

Fiat OM CP3/100
diesel
6-cylinder
liquid-cooled
Displacement:452.28 ci 7.4 L
Bore/Stroke:4.33x5.12 inches 110 x 130 mm
Power:130 hp 96.9 kW
Rated RPM:2100

Transmission

Gears:12 forward and 4 reverse

Dimensions

Wheelbase:101.18 inches 256 cm
Weight:11686 lbs 5300 kg
