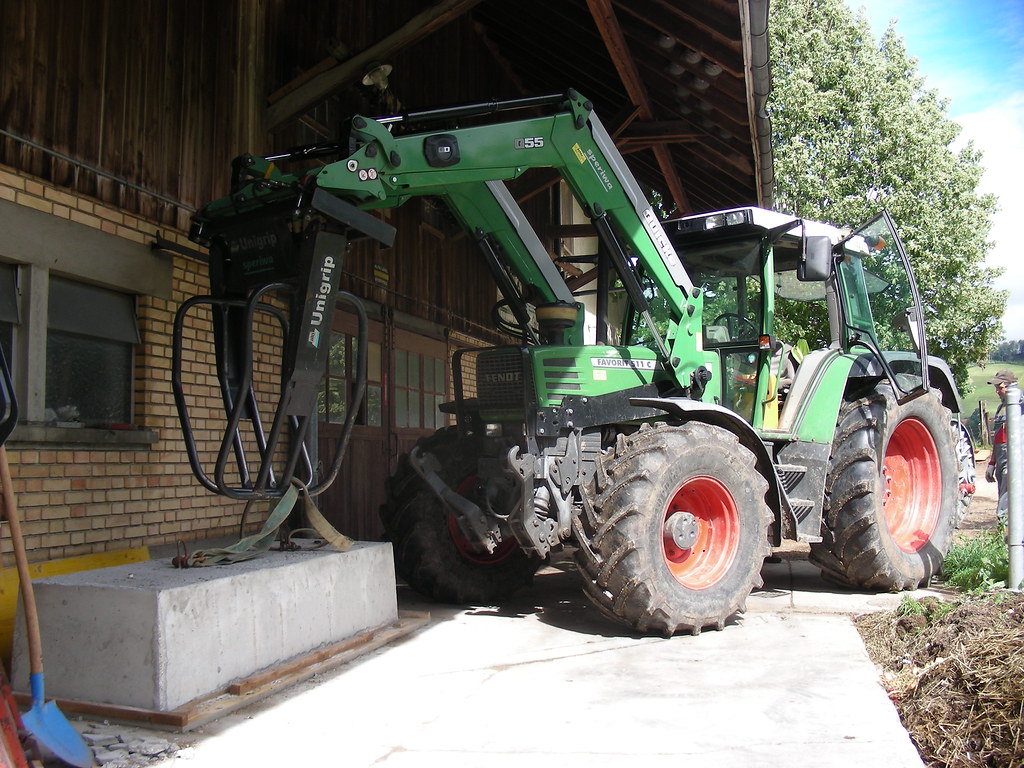

Fendt Favorit 511C

Production: 1994 - 1999

Production
Manufacturer:	Fendt

Fendt Favorit 511C Power
Engine:	115 hp 85.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	electro-hydraulic front and rear
Steering:	power
Brakes:	hydraulic disc
Cab:	Cab standard with heater. Air-conditioning optional.
Transmission:	44-speed four-speed power shift

Hydraulics
Pump flow:	26.9 gpm 101.8 lpm

Tractor hitch
Rear Type:	III/II
Control:	lower-link draft sensing
Rear lift:	14237 lbs 6457 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/750/1000/1400
Front PTO:	independent*Optional
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12
Battery AH:	135

Engine Detail
MWM
diesel
6-cylinder
liquid-cooled
Displacement:	380.4 ci 6.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	115 hp 85.8 kW
Rated RPM:	2300
Torque:	336.3 lb-ft 456.0 Nm
Torque RPM:	1500
Starter volts:	12

Transmission
Type:	four-speed power shift
Gears:	44 forward and reverse
Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.

Dimensions
Wheelbase:	101.9 inches 258 cm
Length:	174.6 inches 443 cm
Width:	93.7 inches 237 cm
Height (cab):	111 inches 281 cm
Weight:	11684 lbs 5299 kg
Max weight:	16535 lbs 7500 kg
Ground clearance:	21.1 inches 53 cm
Front tread:	59.1 to 74.8 inches 150 to 189 cm
Rear tread:	59.1 to 74.8 inches 150 to 189 cm
