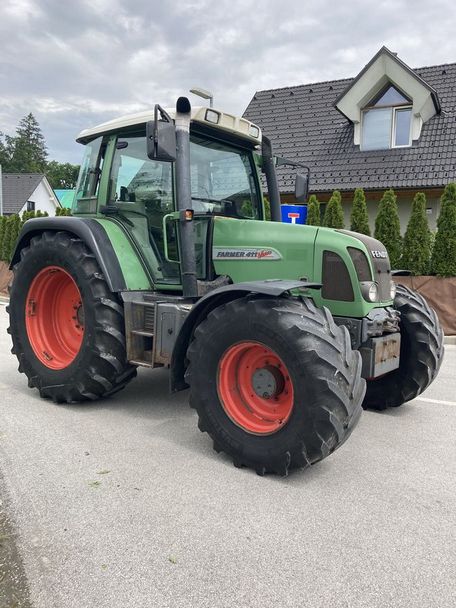

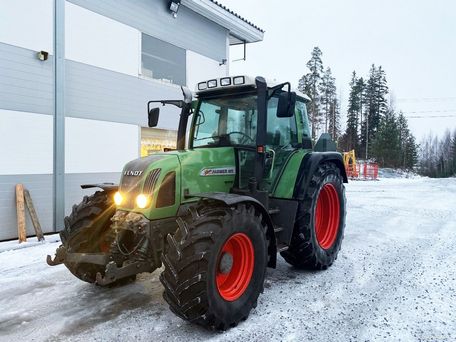

Fendt Farmer 411 Vario

Production: 1999 - 2006

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor

Fendt Farmer 411 Vario Power
Engine:	110 hp 82.0 kW
Drawbar (tested):	81.16 hp 60.5 kW
PTO (tested):	107.7 hp 80.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with heater. Air-conditioning optional.
Transmission:	continuously variable transmission

Hydraulics
Pump flow:	19.8 gpm 74.9 lpm

Tractor hitch
Rear Type:	III
Rear lift:	14482 lbs 6569 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750/1000
Engine RPM:	540@1932 1000@1937
Front PTO:	independent*Optional
Front RPM:	540
1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	143
Battery volts:	12
Battery AH:	90

Engine Detail
Deutz
turbocharged intercooled diesel
4-cylinder 16-valve
liquid-cooled
Displacement:	231.9 ci 3.8 L
Bore/Stroke:	3.86x4.96 inches 98 x 126 mm
Power:	110 hp 82.0 kW
Rated RPM:	2100
Torque:	366.6 lb-ft 497.1 Nm
Torque RPM:	1450
Starter volts:	12

Transmission
Transmission:	Vario
Type:	continuously variable transmission
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	95.2 inches 241 cm
Length:	165 inches 419 cm
Width:	94.3 inches 239 cm
Height (cab):	112 inches 284 cm
Weight:	11552 lbs 5239 kg
Max weight:	16535 lbs 7500 kg
Ground clearance:	20.1 inches 51 cm
Front tread:	71.7 inches 182 cm
Rear tread:	70.9 inches 180 cm
