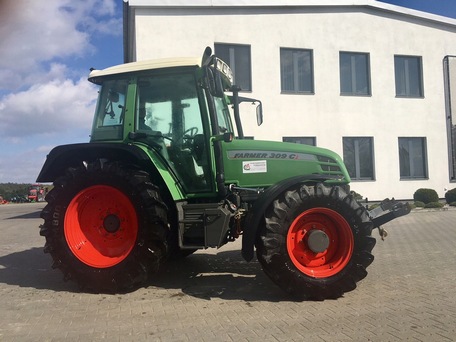

Fendt Farmer 309Ci

Production: 2003 - 2008

Production
Manufacturer:	Fendt (a part of AGCO)

Fendt Farmer 309Ci Power
Engine (net):	103.3 hp 77.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic disc
Cab:	Cab standard with heat. Air-conditioning optional.
Transmissions:	21-speed synchronized
21-speed shuttle

Hydraulics
Type:	open center
Pressure:	2900 psi 200.0 bar
Valves:	2 to 4
Pump flow:	18.5 gpm 70.0 lpm

Tractor hitch
Rear Type:	III/II
Rear lift:	10979 lbs 4980 kg
Front lift:	6493 lbs 2945 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750/1000
Front PTO:	independent*Optional
Front RPM:	540
1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	95
Charging volts:	14
Battery volts:	12
Battery AH:	90

Engine Detail
Deutz
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	246.4 ci 4.0 L
Bore/Stroke:	3.98x4.96 inches 101 x 126 mm
Rated Power (ECE R24):	103.3 hp 77.0 kW
Maximum Power (ECE R24):	110 hp 82.0 kW
Rated RPM:	2300
Torque:	349.6 lb-ft 474.1 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	94 inches 238 cm
4WD Wheelbase:	89.8 inches 228 cm
Length:	157.5 inches 400 cm
Width:	84.3 inches 214 cm
Height (cab):	106.3 inches 270 cm
Ground clearance:	18.9 inches 48 cm
