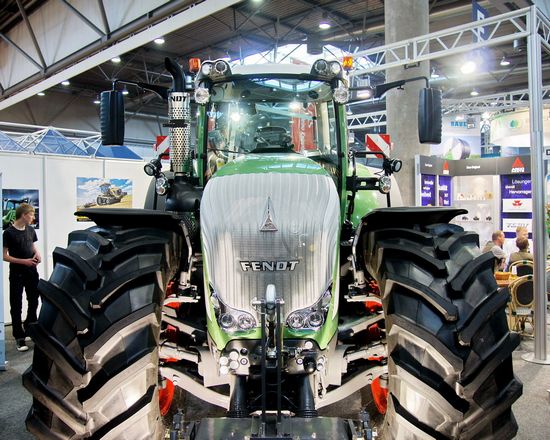

Fendt 939 Vario

Production: 2010 - 2022

Production
Manufacturer:	Fendt (a part of AGCO)
Type:	Row-Crop tractor

Fendt 939 Vario Power
Engine (gross):	376 hp 280.4 kW
Engine (net):	360 hp 268.5 kW
Engine (max):	396 hp 295.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	continuously-variable transmission

Hydraulics
Valves:	4 to 8
Pump flow:	42.3 gpm 160.1 lpm
57.1 gpm 216.1 lpm *Optional

Tractor hitch
Rear lift:	26526 lbs 12032 kg
Front lift:	12476 lbs 5659 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540E/1000
1000/1000E
Front PTO:	independent*Optional
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	300*Dual 150A alternators.
Battery volts:	12

Engine Detail
Deutz TCD 7.8
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	473.2 ci 7.8 L
Bore/Stroke:	4.33x5.35 inches 110 x 136 mm
Emissions:	Tier IV Interim
Rated Power (ECE R24):	360 hp 268.5 kW
Rated Power (EC 97/98):	376 hp 280.4 kW
Maximum Power (ECE R24):	390 hp 290.8 kW
Maximum Power (EC 97/68):	396 hp 295.3 kW
Rated RPM:	2200
Torque:	1141 lb-ft 1547.2 Nm
Torque RPM:	1450
Starter type:	electric

Transmission
Transmission:	Vario ML260
Type:	continuously-variable transmission
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	120.1 inches 305 cm
Length:	222.6 inches 565 cm
Width:	108.3 inches 275 cm
Height (cab):	132.8 inches 337 cm
Ground clearance:	18.9 inches 48 cm
