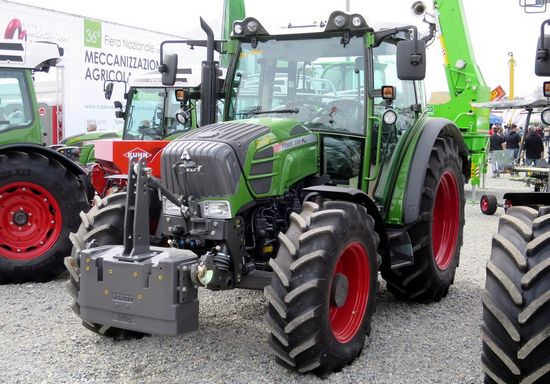

Fendt 209

Production: 2003 - 2009

Production
Manufacturer:	Fendt (a part of AGCO)
Type:	Utility tractor

Variants

utility

ultra-narrow

narrow

wide specialty

Fendt 209 Power
Engine (gross):	92.5 hp 69.0 kW
Engine (net):	88.5 hp 66.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic disc
Cab:	Cab standard with available heat and air-conditioning.
Transmissions:	21-speed synchromesh
21-speed shuttle

Hydraulics
Type:	open center
Pressure:	2900 psi 200.0 bar
Valves:	2 or 3
Pump flow:	12.4 gpm 46.9 lpm
19.6 gpm 74.2 lpm *Optional

Tractor hitch
Rear Type:	2
Front Hitch:	optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750/1000
540/750/ground*Optional
Front PTO:	independent*Optional
Front RPM:	540
1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	95
Charging volts:	14
Battery volts:	12
Battery AH:	88

Engine Detail
Deutz
turbocharged diesel
4-cylinder
air-cooled
Displacement:	263.3 ci 4.3 L
Bore/Stroke:	4.02x5.20 inches 102 x 132 mm
Rated Power (ECE R24):	88.5 hp 66.0 kW
Rated Power (EC 97/98):	92.5 hp 69.0 kW
Rated RPM:	2300
Torque:	250 lb-ft 339.0 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	87.9 inches 223 cm
Length:	145.5 inches 369 cm
Width:	77.3 inches 196 cm
Height:	98.4 inches 249 cm
Weight:	6834 lbs 3099 kg
Max weight:	11684 lbs 5299 kg
Front tread:	58.8 inches 149 cm
Rear tread:	59.1 inches 150 cm
