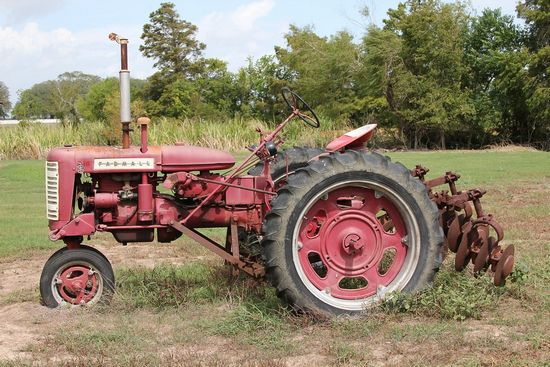

Farmall 200

Production: 1954 - 1956

Production
Manufacturer:	Farmall (a part of International Harvester)
Original price:	$1,970 (1956)

Farmall 200 Power
Drawbar (tested):	20.92 hp 15.6 kW
Belt (tested):	24.11 hp 18.0 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	differential mechanical dry disc
Cab:	Open operator station.
Transmission:	4-speed sliding gear

Power Take-off (PTO)
Rear RPM:	540

200 Serial Numbers
Location:	Clutch housing, right side
1954:	501
1955:	1032
1956:	10904

Engine Detail
International Harvester C123
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement:	122.7 ci 2.0 L
Bore/Stroke:	3.125x4.00 inches 79 x 102 mm
Air cleaner:	oil bath
Compression:	6.5:1
Rated RPM:	1400
Firing order:	1-3-4-2
Starter volts:	6
Oil capacity:	5 qts 4.7 L

Transmission
Type:	sliding gear
Gears:	4 forward and 1 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	82.25 inches 208 cm
Weight:	3,541 lbs 1606 kg
Front tread:	6.625 to 12.375 inches 16 to 31 cm
Rear tread:	48 to 80 inches 121 to 203 cm
