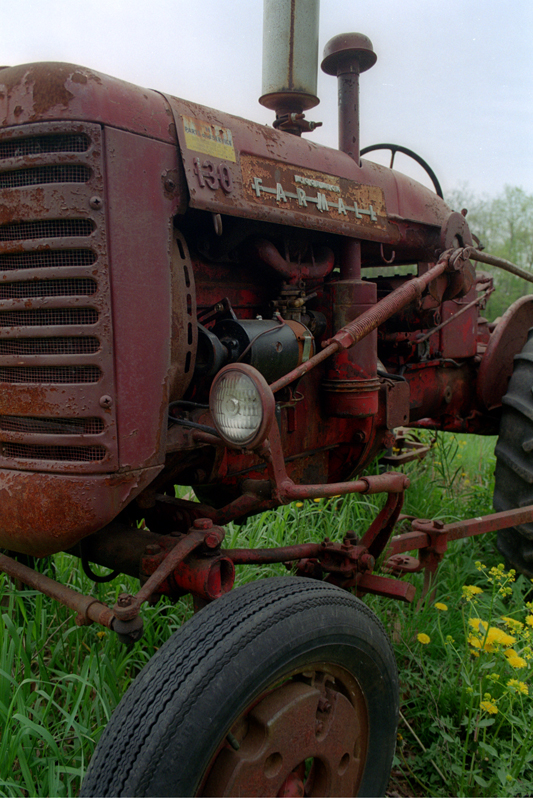

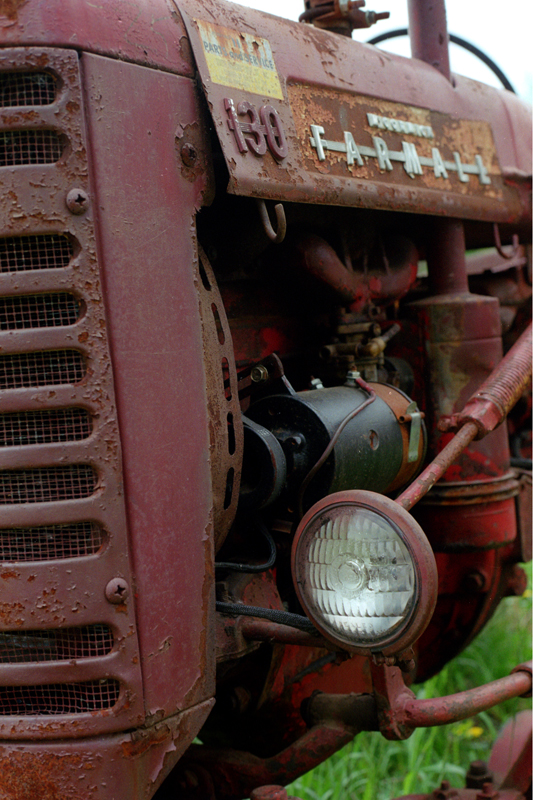

Farmall 130

Production: 1956 - 1958

Production
Manufacturer:	Farmall (a part of International Harvester)
Type:	Row-Crop tractor
Total built:	9,197
Original price:	$2000 (1958)

Variants

row-crop

high-crop

Farmall 130 Power
Drawbar (tested):	19.91 hp 14.8 kW
Belt (tested):	22.23 hp 16.6 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	differential mechanical contracting band
Cab:	Open operator station.
Transmission:	4-speed sliding gear

Tractor hitch
Type:	IH Fast-Hitch (1-arm)

Power Take-off (PTO)
Rear RPM:	540

130 Serial Numbers
Location:	Serial number plate on the left side of the clutch housing.
1956:	501
1957:	1120
1958:	8363
Final:	10209

Engine Detail
International Harvester C-123
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement:	122.7 ci 2.0 L
Bore/Stroke:	3.125x4.00 inches 79 x 102 mm
Air cleaner:	oil bath
Compression:	6.8:1
Rated RPM:	1400
Firing order:	1-3-4-2
Starter volts:	6
Oil capacity:	5 qts 4.7 L
Coolant capacity:	15 qts 14.2 L

Transmission
Type:	sliding gear
Gears:	4 forward and 1 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	71 inches 180 cm
Length:	107 inches 271 cm
Width:	56 inches 142 cm
Height (steering wheel):	65 inches 165 cm
Operating weight:	2,800 lbs 1270 kg
Ballasted weight:	4,650 lbs 2109 kg
Ground clearance:	21.9 inches 55 cm
27 inches 68 cm (high crop)
Front tread:	44 to 64 inches 111 to 162 cm
Rear tread:	40 to 68 inches 101 to 172 cm
