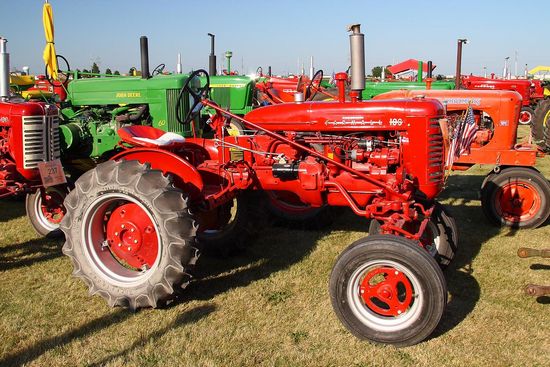

Farmall 100

Production: 1954 - 1956

Production
Manufacturer:	Farmall (a part of International Harvester)
Type:	Row-Crop tractor
Total built:	16,191 (row-crop)
1,057 (high-clearance)

Variants

utility tractor

row-crop tractor

Farmall 100 Power
Plows:	1
Drawbar (tested):	17.83 hp 13.3 kW
Belt (tested):	20.13 hp 15.0 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	contracting band
Cab:	Open operator station.
Transmission:	4-speed gear

Tractor hitch
Type:	IH Fast Hitch

100 Serial Numbers
1954:	501
1955:	1720
1956:	12895
Final:	18940

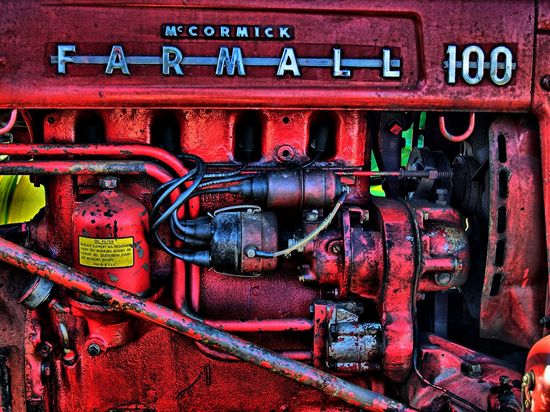

Engine Detail
International Harvester C-123
gasoline
4-cylinder
liquid-cooled
Displacement:	122.7 ci 2.0 L
Bore/Stroke:	3.125x4.00 inches 79 x 102 mm
Air cleaner:	oil bath
Compression:	6.5:1
Rated RPM:	1400
Firing order:	1-3-4-2
Starter volts:	6
Oil capacity:	5 qts 4.7 L

Transmission
Type:	gear
Gears:	4 forward and 1 reverse

Dimensions
Wheelbase:	71 inches 180 cm
Length:	107 inches 271 cm
Height (steering wheel):	65 inches 165 cm
