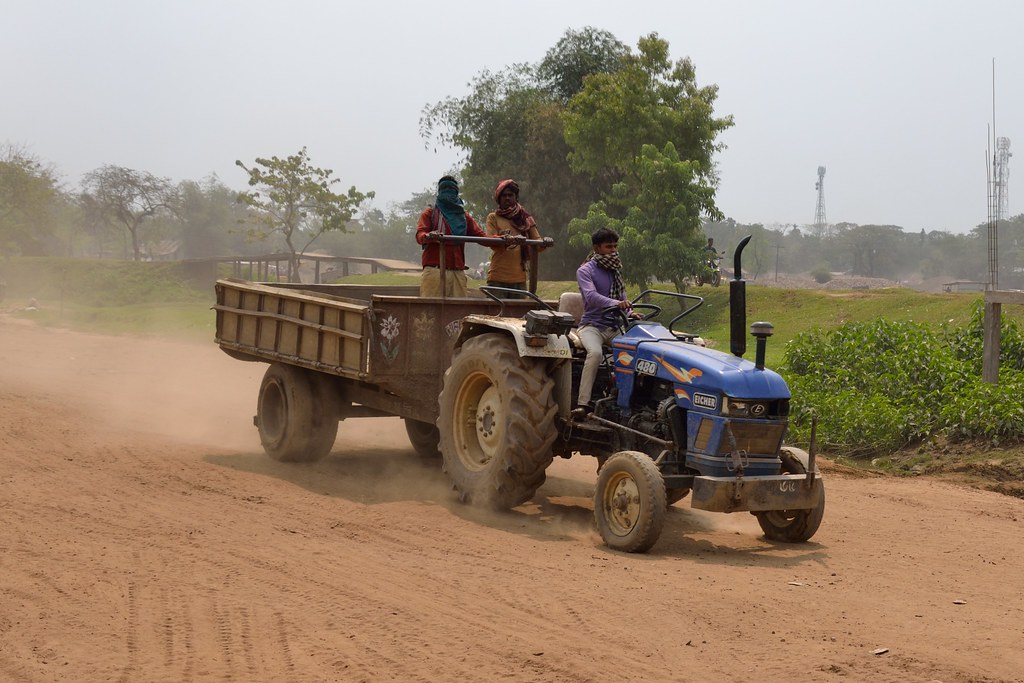

Eicher 480

Production: 2002

Production
Manufacturer:	Eicher (a part of TAFE)
Factory:	India

Eicher 480 Power
Engine:	44 hp 32.8 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	mechanical dry disc
Cab:	Open operator station.
Transmission:	8-speed gear

Hydraulics
Type:	open center

Tractor hitch
Rear lift:	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540

Electrical
Charging system:	alternator
Battery volts:	12
Battery AH:	75

Engine Detail
Simpson S325/E2
diesel
3-cylinder
liquid-cooled
Displacement:	152.6 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power:	44 hp 32.8 kW
Fuel system:	direct injection
Rated RPM:	2150
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	mechanical dry disc

Dimensions
Wheelbase:	75 inches 190 cm
Length:	135.2 inches 343 cm
Width:	67.3 inches 170 cm
Height:	87.4 inches 221 cm
Weight:	4398 lbs 1994 kg
Ground clearance:	14.2 inches 36 cm
