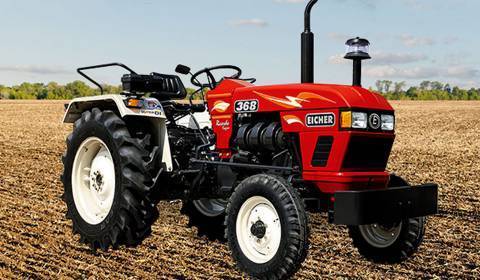

Eicher 368

Production
Manufacturer:	Eicher (a part of TAFE)
Factory:	India

Eicher 368 Power
Engine:	37.3 hp 27.8 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	mechanical dry disc
Cab:	Open operator station.
Transmission:	8-speed gear

Capacity
Fuel:	11.9 gal 45.0 L
Hydraulic system:	10.6 gal 40.1 L

Hydraulics
Capacity:	10.6 gal 40.1 L

Tractor hitch
Rear lift:	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	35
Battery volts:	12
Battery AH:	75

Engine Detail
Eicher 398 DD
diesel
3-cylinder
air-cooled
Displacement:	179.7 ci 2.9 L
Bore/Stroke:	3.937x4.921 inches 100 x 125 mm
Power:	37.3 hp 27.8 kW
Rated RPM:	2150
Starter:	electric
Starter volts:	12
Oil capacity:	10.3 qts 9.7 L

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	mechanical dry disc
Oil capacity:	42.3 qts 40.0 L

Dimensions
Wheelbase:	79.1 inches 200 cm
Length:	143.7 inches 364 cm
Width:	67.3 inches 170 cm
Height:	86.1 inches 218 cm
Weight:	4288 lbs 1945 kg
Ground clearance:	15.2 inches 38 cm
