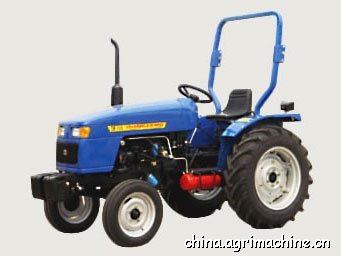

Dongfeng DF-350
Contents:
Production | |
| Manufacturer: | Dongfeng |
| Factory: | Changzhou, Jiangsu, China |
Variants | |
| 4WD |
Dongfeng DF-350 Power | |
| Engine: | 35 hp 26.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Brakes: | disc |
| Transmission: | 8-speed |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24"/610mm): | 1,279 lbs 580 kg |
Power Take-off (PTO) | |
| Rear PTO: | live (2-stage clutch) |
| Rear RPM: | 540/1000 |
Engine Detail | |
| TY395 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 136.1 ci 2.2 L |
| Bore/Stroke: | 3.74x4.134 inches 95 x 105 mm |
| Power: | 35 hp 26.1 kW |
| Rated RPM: | 2400 |
Transmission | |
| Gears: | 8 forward and 2 reverse |
Dimensions | |
| Wheelbase: | 68.3 inches 173 cm |
| Length: | 132.7 inches 337 cm |
| Width: | 59.1 inches 150 cm |
| Height: | 63.8 inches 162 cm |
| Weight: | 2,844 lbs 1290 kg |
| Ground clearance: | 14.9 inches 37 cm |
