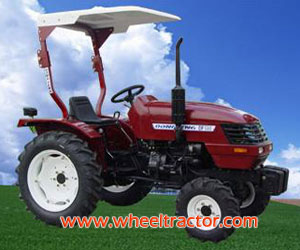

Dongfeng DF-204
Contents:
Production | |
| Manufacturer: | Dongfeng |
| Factory: | Changzhou, Jiangsu, China |
Variants | |
| 2WD |
Dongfeng DF-204 Power | |
| Engine: | 24.5 hp 18.3 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydraulic power |
| Brakes: | disc |
| Transmission: | 8-speed |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24"/610mm): | 933 lbs 423 kg |
Power Take-off (PTO) | |
| Rear PTO: | live (2-stage clutch) |
| Rear RPM: | 540/730 |
Engine Detail | |
| Y380T | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 83.9 ci 1.4 L |
| Bore/Stroke: | 3.15x3.543 inches 80 x 90 mm |
| Power: | 24.5 hp 18.3 kW |
| Rated RPM: | 2600 |
Transmission | |
| Gears: | 8 forward and 2 reverse |
Dimensions | |
| Wheelbase: | 60.0 inches 152 cm |
| Length: | 104.8 inches 266 cm |
| Width: | 45.6 inches 115 cm |
| Height: | 53.7 inches 136 cm |
| Weight: | 2,403 lbs 1090 kg |
| Ground clearance: | 11.5 inches 29 cm |
