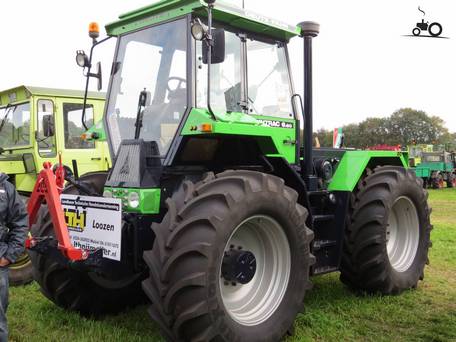

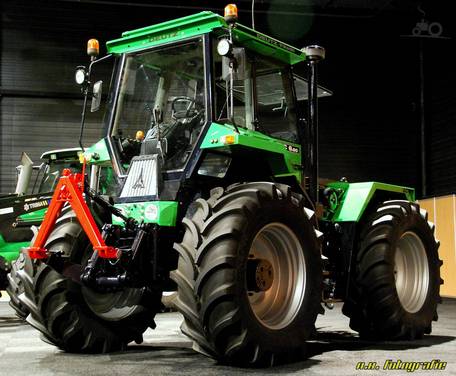

Deutz-Fahr Intrac 6.60

Production: 1987 - 1990

Production
Manufacturer:	Deutz-Fahr
Type:	Tool Carrier tractor

Deutz-Fahr Intrac 6.60 Power
Engine:	150 hp 111.9 kW

Mechanical
Chassis:	4x4 4WD
Transmissions:	15-speed
30-speed

Hydraulics
Pressure:	2538 psi 175.0 bar
Pump flow:	14.8 gpm 56.0 lpm

Tractor hitch
Rear lift:	8996 lbs 4080 kg

Power Take-off (PTO)
Rear RPM:	540/1000
Front RPM:	1000

Engine Detail
Deutz BF6L913
turbocharged diesel
6-cylinder
air-cooled
Displacement:	373.9 ci 6.1 L
Bore/Stroke:	4.02x4.92 inches 102 x 125 mm
Power:	150 hp 111.9 kW
Rated RPM:	2300
Torque:	394.6 lb-ft 535.1 Nm
Torque RPM:	1650

Dimensions
Wheelbase:	106.4 inches 270 cm
Length:	204.7 inches 519 cm
Width:	94.1 inches 239 cm
Height:	125.2 inches 318 cm
Weight:	13889 lbs 6300 kg
Max weight:	22046 lbs 10000 kg
Ground clearance:	22.8 inches 57 cm
