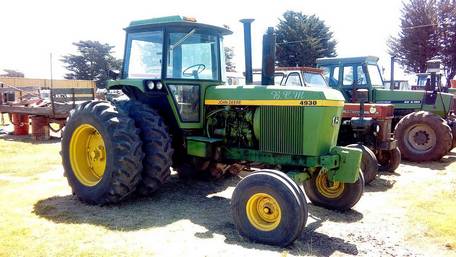

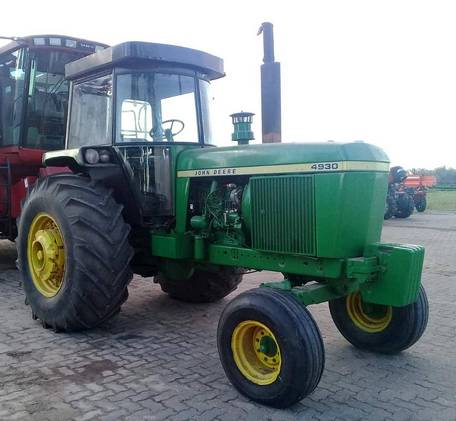

John Deere 4930
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
| The John Deere 4930 was the similar to the US model 4440, exported to Argentina from the United States. | |
John Deere 4930 Power | |
| Engine: | 160 hp 119.3 kW |
| PTO (claimed): | 130 hp 96.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 HFWD 4WD | |
| Differential lock: | hydraulic rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Sound Gard cab with air-conditioning optional. |
| Transmissions: | 16-speed partial power shift |
| 8-speed full power shift | |
Hydraulics | |
| Type: | closed center |
| Pressure: | 2250 psi 155.1 bar |
| 2WD Pump flow: | 23 gpm 87.1 lpm |
| 4WD Pump flow: | 26.5 gpm 100.3 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | position and draft control |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet discs |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@2200 |
4930 Serial Numbers | |
| Location: | Serial number plate on the rear of the 4930, above the PTO shaft. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| ROPS Charging amps: | 61 |
| Cab Charging amps: | 72 |
| Batteries: | 2 |
| Battery CCA: | 800 |
| Battery volts: | 6 |
| Battery Group: | 5D |
Engine Detail | |
| John Deere | |
| intercooled turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement: | 466 ci 7.6 L |
| Bore/Stroke: | 4.5625x4.75 inches 116 x 121 mm |
| Power: | 160 hp 119.3 kW |
| Fuel system: | direct injection |
| Air cleaner: | dry |
| Pre-heating: | ether injection |
| Rated RPM: | 2200 |
| Idle RPM: | 800-2400 |
| Operating RPM: | 1500-2200 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Oil capacity: | 20 qts 18.9 L |
| Coolant capacity: | 36 qts 34.1 L |
Dimensions | |
| Wheelbase: | 106.7 inches 271 cm |
| Length: | 158.6 inches 402 cm |
| Width: | 90 inches 228 cm |
| Height: | 117.3 inches 297 cm |
| Front tread: | 55.9 to 91.7 inches 141 to 232 cm |
| Rear tread: | 68.1 to 110.2 inches 172 to 279 cm |
